42214-2 | AMP

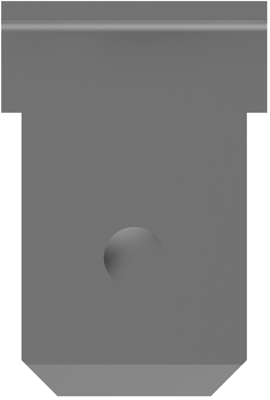

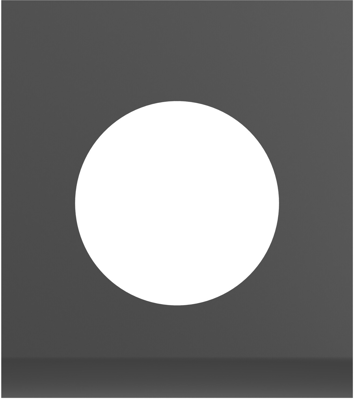

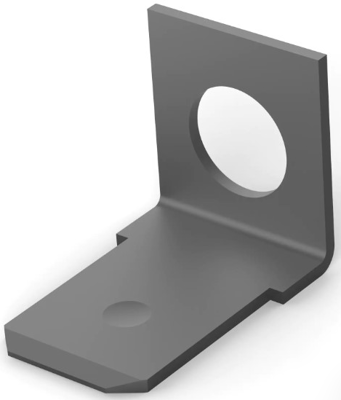

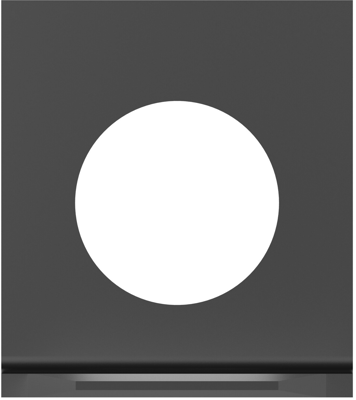

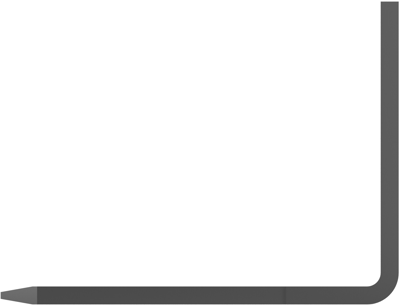

Faston plug, 6.35 x 0.81 mm, L 11.18 mm, uninsulated, angled, 42214-2
Unit Price (€ / pc.)
0.1142 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Terminals, 42214-2, AMP
Insertion Force: Low, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 90°, Plating Thickness:, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Through Hole, Stud Diameter: 4.34 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 4.34 mm, Receptacle Terminal Stock Thickness: 0.78 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 11.18 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
