42581-2 | AMP

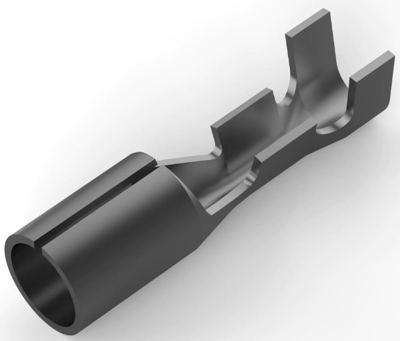

Round plug, Ø 3.96 mm, L 17.53 mm, uninsulated, straight, 0.3-0.8 mm², AWG 22-18, 42581-2
Order No.: 35P2573
EAN: 4099889614893
MPN:
42581-2
Unit Price (€ / pc.)
0.1690 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 28 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.1690 €
20000 pcs.
0.1523 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire end ferrule, 42581-2, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.96 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.17 mm, Accepts Wire Insulation Diameter Range: 2.16-3.17 mm, Wire Size: 22-18 AWG, Wire Size: 0.3-0.8 mm², Wire Size: 642-1624 CMA, Operating Temperature Range: -40-85 °C,-40-85 °C, Heavy Duty: No, Packaging Quantity: 10000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 22-18 | |
| Design | straight | |
| diameter | 3.96 mm | |
| Isolated | No | |
| Length | 17.53 mm | |
| Cable cross-section | 0.3-0.8 mm² | |
| Material | bronze, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
