42822-2 | AMP

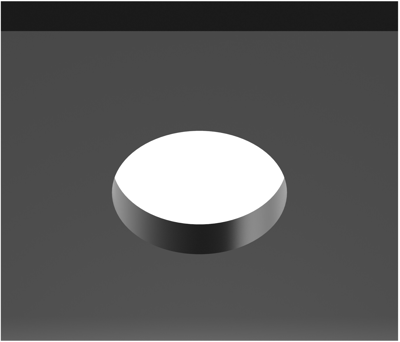

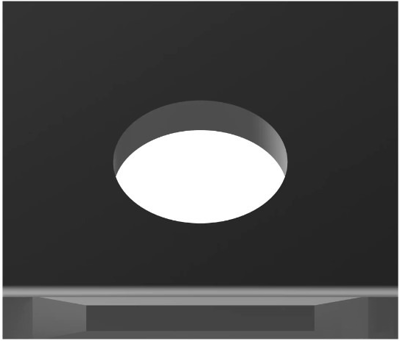

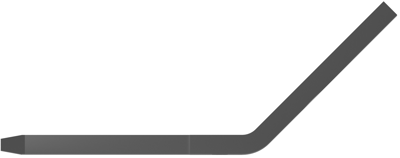

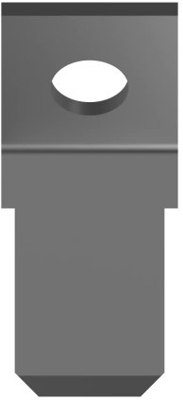

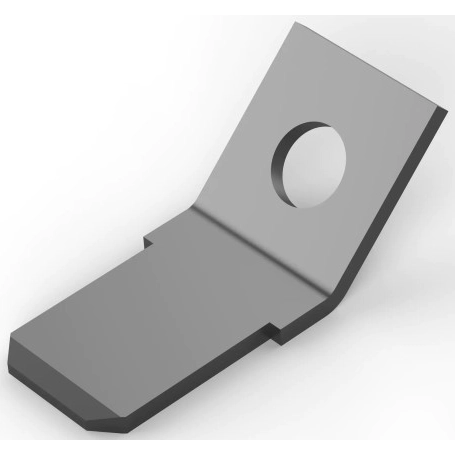

Faston plug, 6.35 x 0.81 mm, L 10.16 mm, uninsulated, angled, 42822-2
Unit Price (€ / pc.)
0.1309 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 32 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.1309 €
4000 pcs.
0.1095 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 42822-2, AMP
Insertion Force: Low, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, Plating Thickness:, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, Stud Diameter: 3.3 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.68 mm, Receptacle Terminal Stock Thickness: 0.78 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 10.16 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 45° |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
