60465-2 | AMP

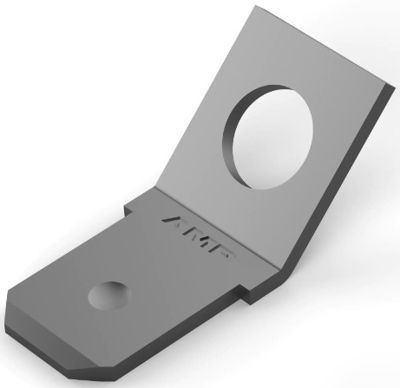

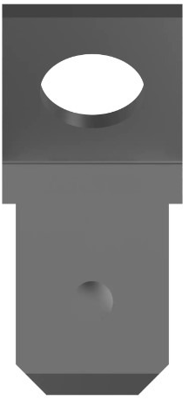

Faston plug, 6.35 x 0.83 mm, L 9.53 mm, uninsulated, angled, 60465-2
Unit Price (€ / pc.)
0.1571 € *
Available: 0 pcs.
Available in 5 Days: 14,503 pcs.
Leadtime: 32 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
600 pcs.
0.1571 €
3300 pcs.
0.1309 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 60465-2, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, Plating Thickness:, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, Stud Diameter: 4.34 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.83 mm, PCB Hole Diameter: 3.7 mm, Receptacle Terminal Stock Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | faston plug | |
| Design | angled | |
| Isolated | No | |
| Length | 9.53 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.83 mm | |

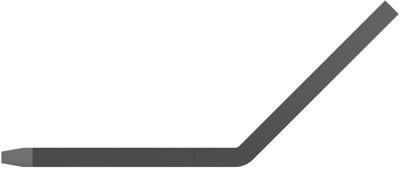

| Angulation | 45° |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
