60660-1 | AMP

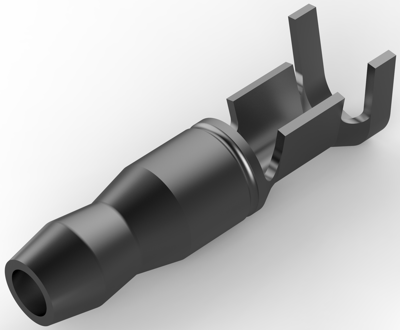

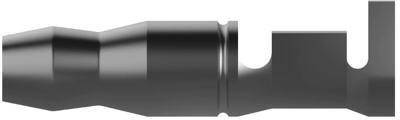

Round plug, Ø 4.57 mm, L 18.92 mm, uninsulated, straight, 0.8-2.0 mm², AWG 18-14, 60660-1
Order No.: 35P2574
EAN: 4099889614909
MPN:
60660-1
Unit Price (€ / pc.)
0.0774 € *
Available: 0 pcs.
Leadtime: On Request **
Wire end ferrule, 60660-1, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 4.57 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 4.45 mm, Accepts Wire Insulation Diameter Range: 3.05-4.45 mm, Wire Size: 18-14 AWG, Wire Size: 0.8-2 mm², Wire Size: 1624-4106 CMA, Operating Temperature Range: -40-105 °C, Heavy Duty: No, Packaging Quantity: 12000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel, Comment: Can be molded.
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 18-14 | |
| Design | straight | |
| diameter | 4.57 mm | |
| Isolated | No | |
| Length | 18.92 mm | |
| Cable cross-section | 0.8-2.0 mm² | |
| Material | bronze, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
