60789-1 | AMP

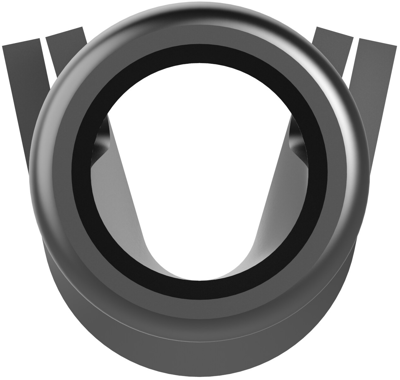

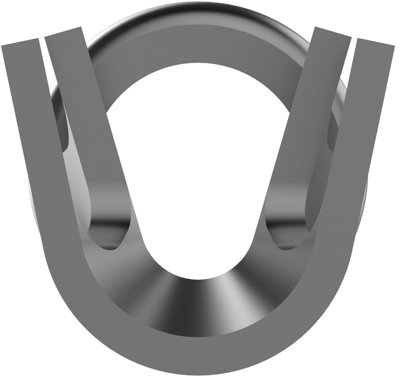

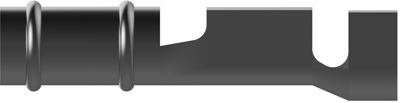

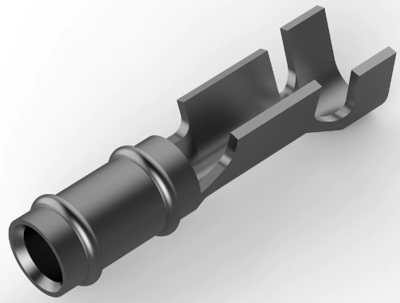

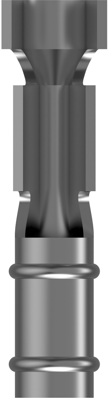

Round plug, Ø 1.47 mm, L 9.65 mm, uninsulated, straight, 0.2-0.6 mm², AWG 24-20, 60789-1
Unit Price (€ / pc.)
0.1321 € *
Available: 0 pcs.
Available in 5 Days: 1,450 pcs.
Leadtime: 19 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
700 pcs.
0.1321 €
3300 pcs.
0.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 60789-1, TE Connectivity
PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Support Style: Open Barrel, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Hole Diameter: 3.3 mm, PCB Terminal Wire Insulation Diameter (Max): 1.78 mm, Accepts Wire Insulation Diameter Range: 1.14-1.78 mm, Wire Size: 24-20 AWG, Wire Size: 0.2-0.6 mm², Operating Temperature Range: -55-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 24-20 | |
| Design | straight | |
| diameter | 1.47 mm | |
| Isolated | No | |
| Length | 9.65 mm | |
| Cable cross-section | 0.2-0.6 mm² | |
| Material | bronze, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
