60874-1 | AMP

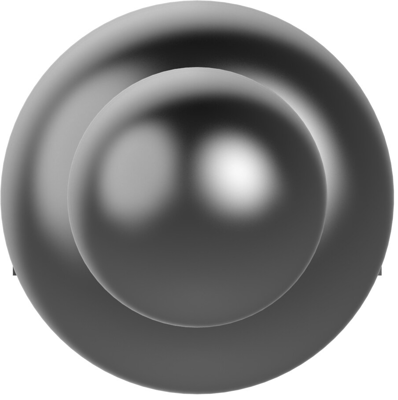

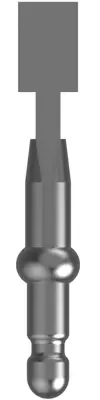

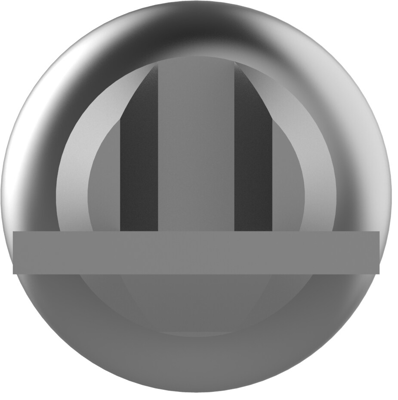

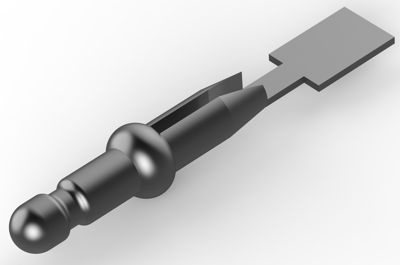

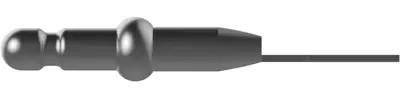

Round plug, Ø 1.47 mm, L 9.65 mm, uninsulated, straight, 60874-1
Unit Price (€ / pc.)
0.1131 € *
Available: 0 pcs.
Available in 5 Days: 11,570 pcs.
Leadtime: 24 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
800 pcs.
0.1131 €
3900 pcs.
0.1107 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 60874-1, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Pin, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 1.6-2.39 mm, PCB Hole Diameter: 4.5 mm, Height Above PC Board: 5.33 mm, Receptacle Terminal Stock Thickness: 0.25 mm, Extension Below Board: 30.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | press connection | |
| Version | round plug | |
| Design | straight | |
| diameter | 1.47 mm | |
| Isolated | No | |
| Length | 9.65 mm | |
| Material | phosphor bronze, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
