60921-1 | AMP

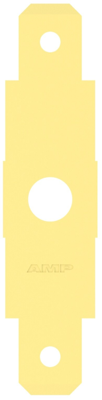

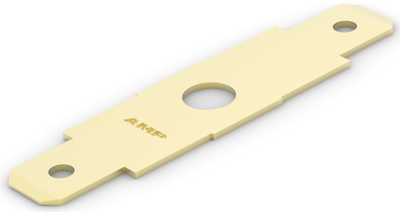

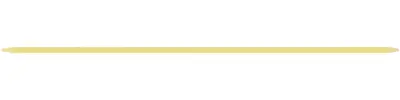

Flat plug distributor, 1 x 2 contacts, 5.21 x 0.51 mm, L 32.41 mm, uninsulated, straight, 60921-1
Unit Price (€ / pc.)
0.1547 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Terminals, 60921-1, AMP
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, PCB Terminal Plating Material: Unplated, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 5.2, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Screw, Stud Diameter: 3.68 mm, PCB Terminal Mating Tab Width: 5.21 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 3.68 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | flat plug distributor, 1 x 2 contacts | |
| Design | straight | |
| Isolated | No | |
| Length | 32.41 mm | |
| Material | brass | |
| Plug width x plug thickness | 5.21 x 0.51 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
