60986-1 | AMP

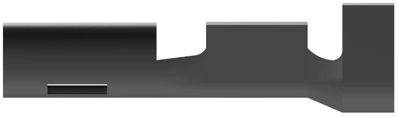

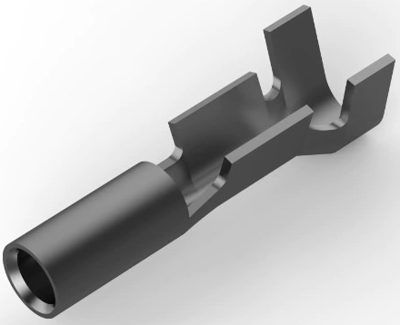

Round plug, Ø 1.47 mm, L 10.03 mm, uninsulated, straight, 0.2-0.6 mm², AWG 24-20, 60986-1
Unit Price (€ / pc.)
0.1547 € *
Available: 0 pcs.
Available in 5 Days: 11,669 pcs.
Leadtime: 19 Weeks **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
600 pcs.
0.1547 €
2900 pcs.
0.1464 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 60986-1, TE Connectivity
PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Support Style: Open Barrel, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Pin, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Hole Diameter: 5.2 mm, PCB Terminal Wire Insulation Diameter (Max): 2.29 mm, Accepts Wire Insulation Diameter Range: 1.52-2.29 mm, Wire Size: 24-20 AWG, Wire Size: 0.2-0.6 mm², Operating Temperature Range: -55-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 24-20 | |
| Design | straight | |
| diameter | 1.47 mm | |
| Isolated | No | |
| Length | 10.03 mm | |
| Cable cross-section | 0.2-0.6 mm² | |
| Material | phosphor bronze, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
