61137-1 | AMP

Round plug, Ø 2.36 mm, L 10.29 mm, uninsulated, straight, 61137-1

Order No.: 34P6342
EAN: 4099889613001
MPN:
61137-1
Series: AMP-IN
AMP

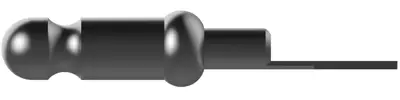

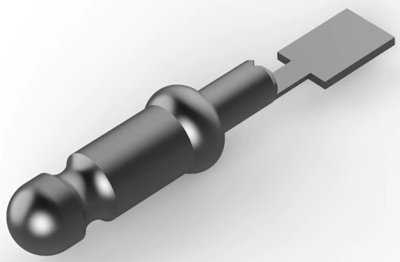

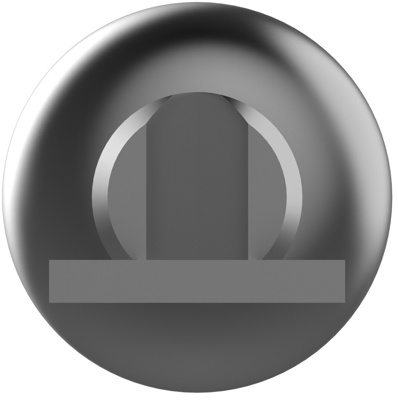

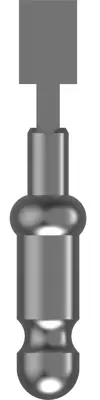

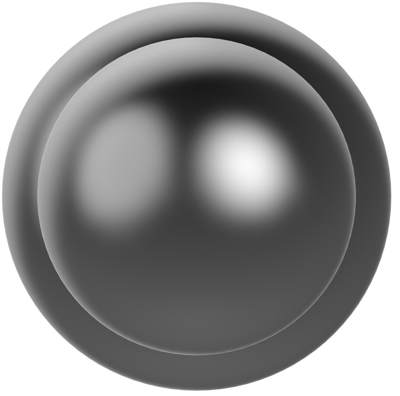

61137-1 AMP Flat Plugs Image 1
61137-1 AMP Flat Plugs Image 2
61137-1 AMP Flat Plugs Image 3
61137-1 AMP Flat Plugs Image 4
61137-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.0976 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.10 € *
*incl. VAT plus shipping costs
**Subject to prior sale
9000 pcs.
0.0976 €

PCB Terminal, 61137-1, TE Connectivity

PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Pin, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 2.36 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 1.6 mm, PCB Hole Diameter: 4.1 mm, Height Above PC Board: 7.75 mm, Receptacle Terminal Stock Thickness: 0.25 mm, Extension Below Board: 2.54 mm, Operating Temperature Range: -55-105 °C, Packaging Quantity: 9000, PCB Terminal Packaging Method: Reel

Technical specifications
Connection solder connection
Version round plug
Design straight
diameter 2.36 mm
Isolated No
Length 10.29 mm
Material phosphor bronze, tin-plated
Logistics
Country of origin CN
Customs tariff number 84879090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
