61260-1 | AMP

Round plug, Ø 2.36 mm, L 13.97 mm, uninsulated, straight, 0.4-0.8 mm², AWG 22-18, 61260-1

Order No.: 34P6341
EAN: 4099889612998
MPN:
61260-1
Series: AMP-IN
AMP

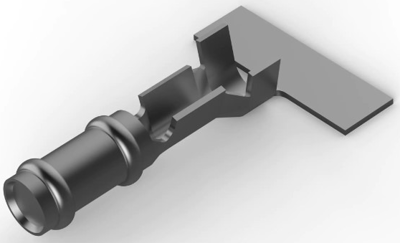

61260-1 AMP Flat Plugs Image 1

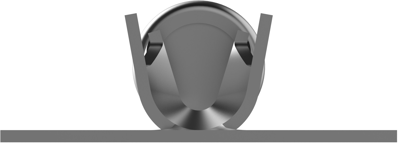

61260-1 AMP Flat Plugs Image 2

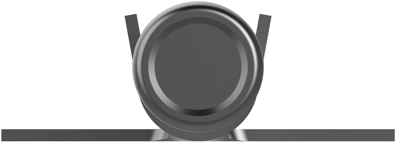

61260-1 AMP Flat Plugs Image 3

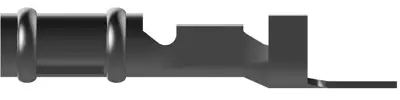

61260-1 AMP Flat Plugs Image 4

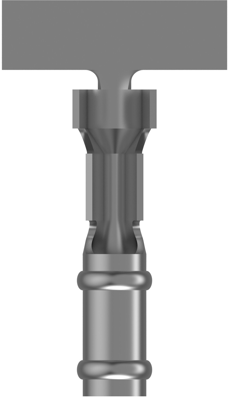

61260-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1987 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
7000 pcs.
0.1987 €

PCB terminal, 61260-1, AMP

PCB Terminal, Receptacle, 22-18 AWG Wire Size, 0.3-0.9 mm² Wire Size, Crimp, Pre-Tin Plating, Bag/Box, Terminates To Wire & Cable, Discrete Wire.

Technical specifications
Connection crimp connection
Version round plug
AWG cross-section AWG 22-18
Design straight
diameter 2.36 mm
Isolated No
Length 13.97 mm
Cable cross-section 0.4-0.8 mm²
Material phosphor bronze, tin-plated
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
