61499-1 | AMP

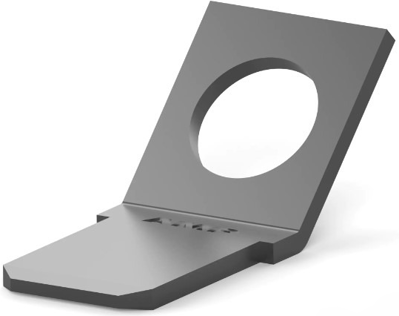

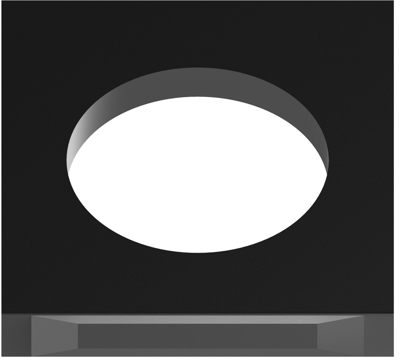

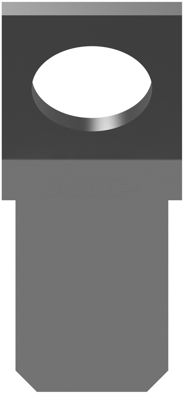

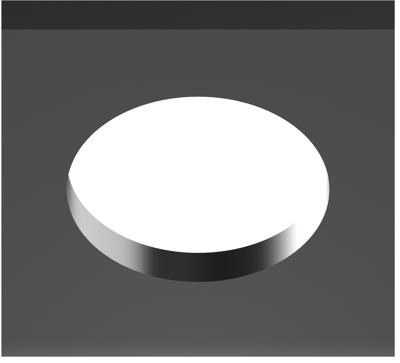

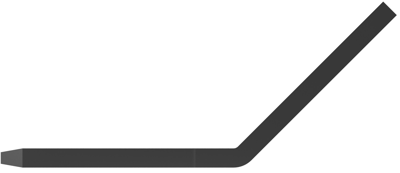

Faston plug, 6.35 x 0.81 mm, L 9.53 mm, uninsulated, angled, 61499-1
Unit Price (€ / pc.)
0.2618 € *
Available: 0 pcs.
Leadtime: 32 Weeks **
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2618 €
100 pcs.
0.2309 €
250 pcs.
0.2023 €
500 pcs.
0.1666 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 61499-1, AMP
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 45°, Finish: Matte, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: 45 Bend, PCB Terminal Termination Method: Screw, Stud Diameter: 5 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 5 mm, Height Above PC Board: 7.48 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, CSA Certified: Yes, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Flachstecker | |
| Bauform | abgewinkelt | |
| Isoliert | No | |
| Länge | 9.53 mm | |
| Material | Messing, verzinnt | |
| Steckbreite x Steckdicke | 6,35 x 0,81 mm | |
| Winkelung | 45° |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
