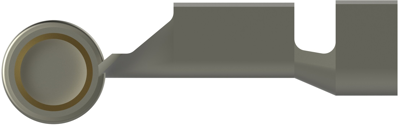

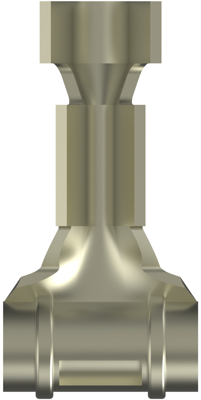

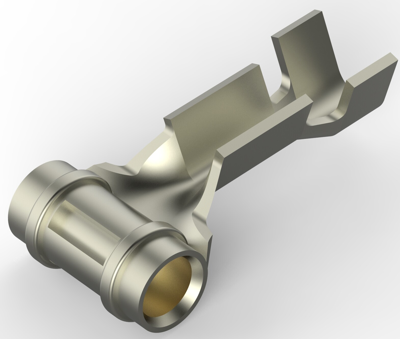

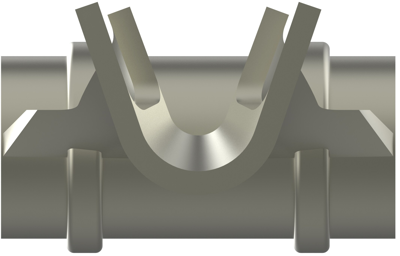

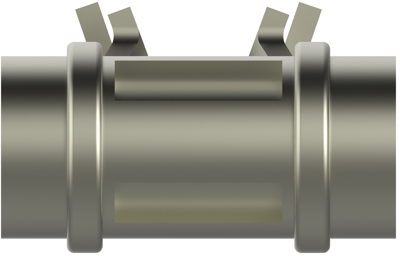

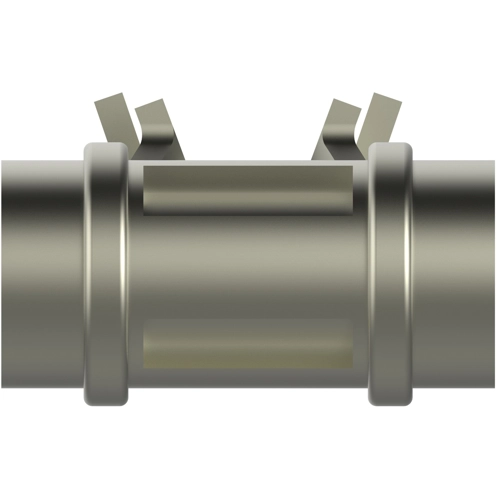

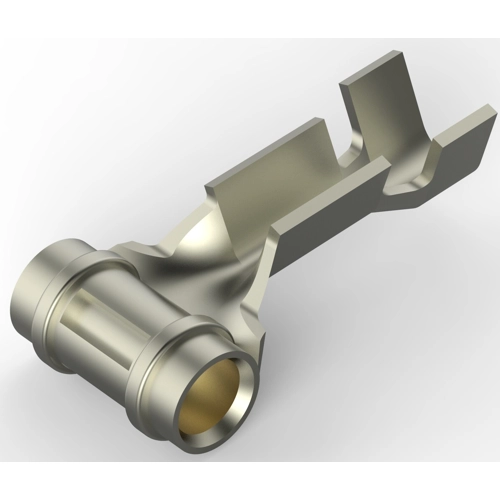

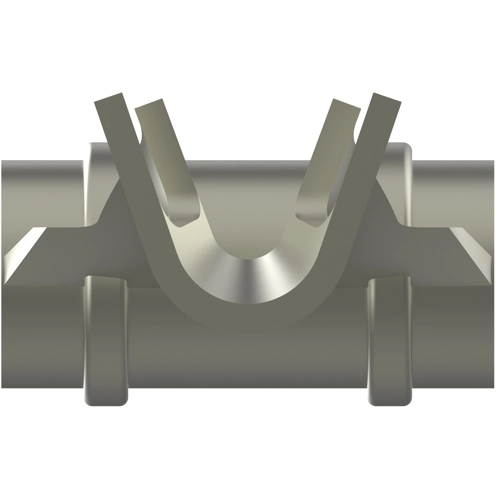

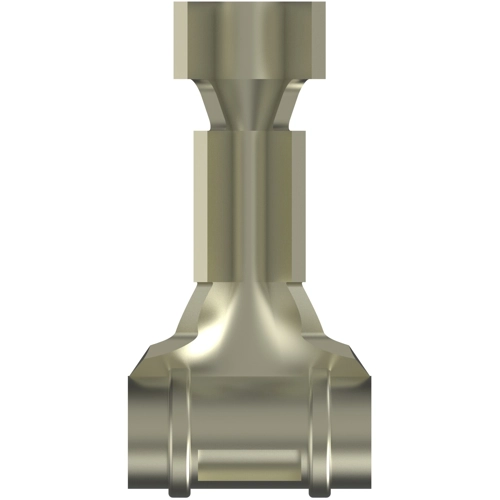

PCB Terminal, 61513-1, TE Connectivity
PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Stud Hole: No, Terminal Angle: 90°, Plating Thickness: 38 µm, PCB Terminal Plating Material: Gold, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Crimp, Wire Insulation Support: With, PCB Hole Diameter: 5.2 mm, PCB Terminal Wire Insulation Diameter (Max): 1.65 mm, Accepts Wire Insulation Diameter Range: 0.89-1.65 mm, Wire Size: 26-22 AWG, Wire Size: 0.12-0.4 mm², Operating Temperature Range: -55-105 °C, Packaging Quantity: 7500, PCB Terminal Packaging Method: Box, Comment: Machine applied applicator required.
