61802-1 | AMP

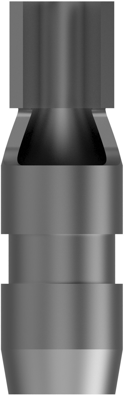

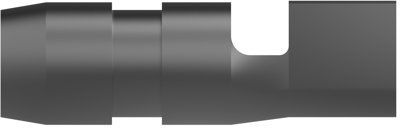

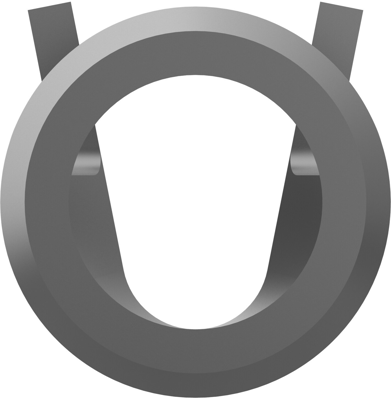

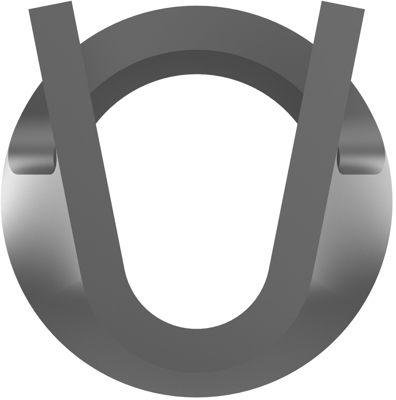

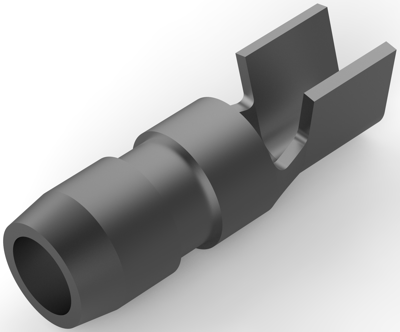

Round plug, Ø 3.96 mm, L 20.45 mm, uninsulated, straight, 0.8-2.0 mm², AWG 18-14, 61802-1
Order No.: 35P2570
EAN: 4099889614862
MPN:
61802-1
Unit Price (€ / pc.)
0.0595 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
1,428.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.0595 €
Wire end ferrule, 61802-1, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Post-Tin,Tin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.96 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 18-14 AWG, Wire Size: 0.8-2 mm², Wire Size: 1624-4106 CMA, Barrel Inside Diameter: 1.52 mm, Crimp Wire Pin, Tab & Ferrule Material Thickness: 0.46 mm, Operating Temperature Range: -40-85 °C,-40-85 °C, Heavy Duty: No, Packaging Quantity: 12000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Rundstecker | |
| AWG-Leiterquerschnitt | AWG 18-14 | |
| Bauform | gerade | |
| Durchmesser | 3.96 mm | |
| Isoliert | No | |
| Länge | 20.45 mm | |
| Leiterquerschnitt | 0,8-2,0 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
