61951-1 | AMP

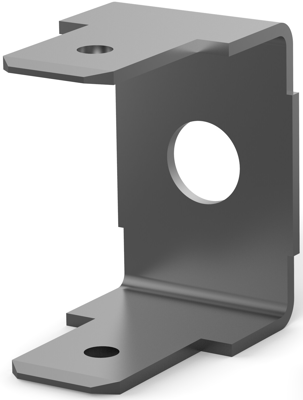

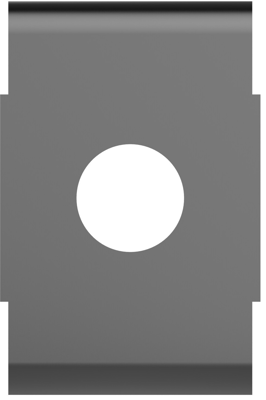

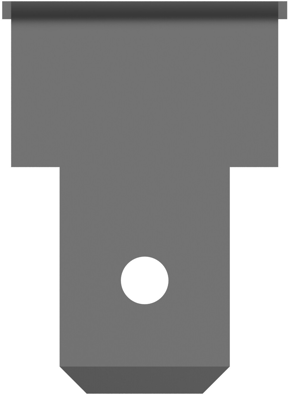

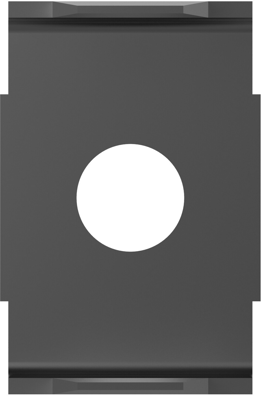

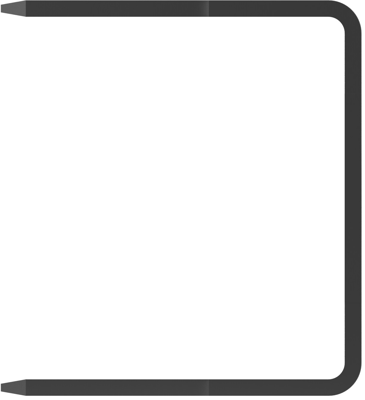

Flat plug distributor, 1 x 2 contacts, 4.75 x 0.51 mm, L 11.05 mm, uninsulated, angled, 61951-1
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Leadtime: 32 Weeks **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3332 €
50 pcs.
0.2975 €
100 pcs.
0.2511 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 61951-1, TE Connectivity
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: 90°, Plating Thickness: 1.01 µm, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 4.75, PCB Terminal Terminal Orientation: Right Angle, PCB Terminal Termination Method: Screw, Stud Diameter: 3.3 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 3.3 mm, Height Above PC Board: 11 mm, Operating Temperature Range: -40-105 °C, CSA Certified: Yes, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | Schraubanschluss | |
| Version | Flachsteckverteiler, 1 x 2 Kontakte | |
| Design | abgewinkelt | |
| Isolated | No | |
| Length | 11.05 mm | |
| Material | Messing, verzinnt | |
| Plug width x plug thickness | 4,75 x 0,51 mm | |
| Angulation | 90° |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
