62074-1 | AMP

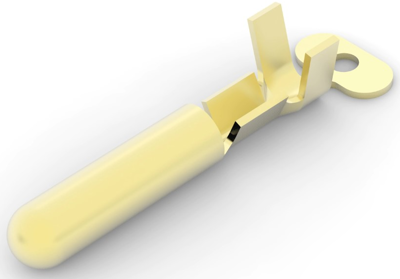

Round plug, Ø 3.17 mm, L 17.51 mm, uninsulated, straight, 0.2-0.6 mm², AWG 24-20, 62074-1
Order No.: 35P2537
EAN: 4099889614732
MPN:
62074-1
Unit Price (€ / pc.)
0.1666 € *
Available: 0 pcs.
Available in 5 Days: 13,500 pcs.
Leadtime: 12 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
4500 pcs.
0.1666 €
9000 pcs.
0.1571 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire end ferrule, 62074-1, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Unplated, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Pin, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.17 mm, Pin Type: Round Pin, Pin Style: Round, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 2.62 mm, Accepts Wire Insulation Diameter Range: 1.52-2.62 mm, Wire Size: 24-20 AWG, Wire Size: 0.2-0.6 mm², Wire Size: 404-1021 CMA, Heavy Duty: No, Packaging Quantity: 4500, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel
Technical specifications
| Connection | crimp connection | |
| Version | round plug | |
| AWG cross-section | AWG 24-20 | |
| Design | straight | |
| diameter | 3.17 mm | |
| Isolated | No | |
| Length | 17.51 mm | |
| Cable cross-section | 0.2-0.6 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
