62526-1 | AMP
62526-1
Order No.: 34P9069
EAN: 4099889614633
MPN:
62526-1
Unit Price (€ / pc.)
0.1249 € *
Available: 0 pcs.
Leadtime: On Request **

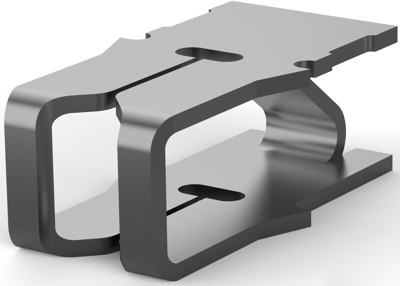

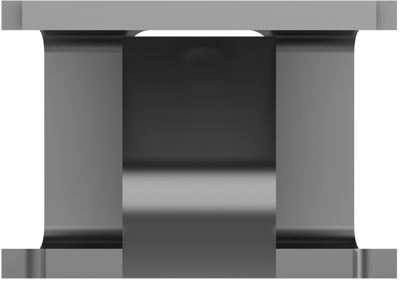

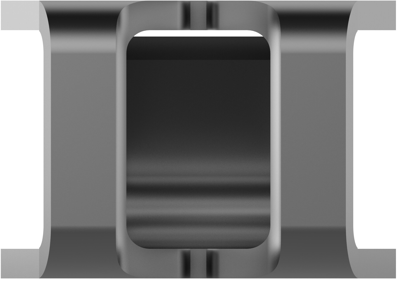

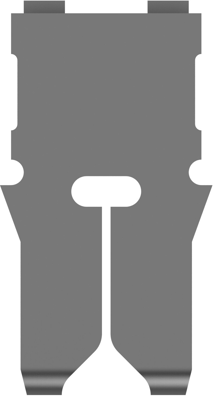

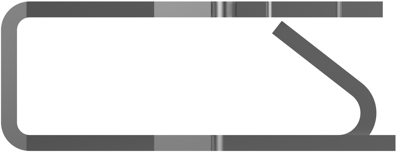

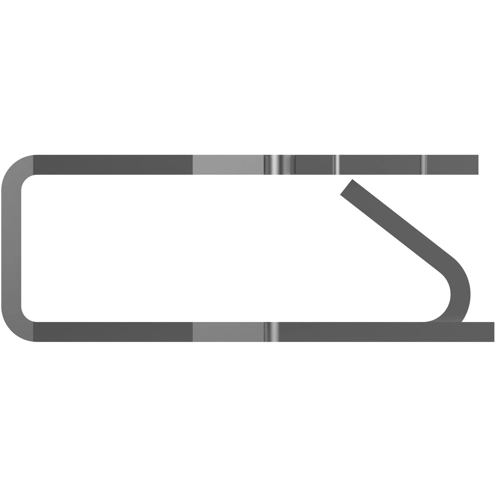

Magnet Wire Terminals, 62526-1, TE Connectivity
Magnet Wire Terminal Wire/Cable Type: Magnet Wire, Sealable: No, Cavity Size: Size 2, Magnet Wire Terminal Plating Material: Tin, Magnet Wire Terminal Terminal Type: Poke-In, Magnet Wire Terminal Terminal Orientation: Twisted, Magnet Wire Terminal Termination Method: IDC Standard, Magnet Wire Terminal Mating Retention Type: Locking, Terminal Height: 7.62 mm, Aluminum Wire Size: 28-25 AWG, Aluminum Wire Size: 0.32-0.45 mm, Lead Wire Size: 20-18 AWG, Lead Wire Size: 0.5-0.9 mm², Operating Temperature Range: -65-150 °C, Identification Number: 6, Packaging Quantity: 500, Magnet Wire Terminal Packaging Method: Bag, Comment: Solid or overcoated stranded lead wire only.
Technical specifications
| Connection | IDC connection | |
| Version | enameled wire contact | |
| AWG cross-section | AWG 20-18 | |
| Isolated | No | |
| Length | 3.43 mm | |
| Cable cross-section | 0.5-0.9 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
