62627-1 | AMP

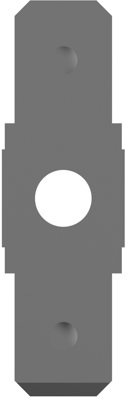

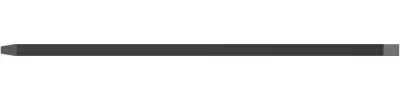

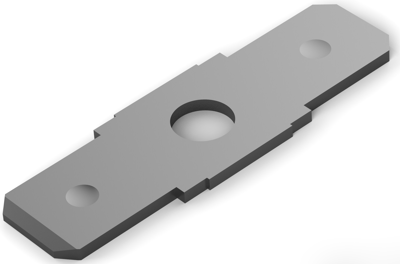

Flat plug distributor, 1 x 2 contacts, 6.35 x 0.81 mm, L 25.65 mm, uninsulated, straight, 62627-1
Unit Price (€ / pc.)
0.3035 € *
Available: 0 pcs.
Available in 5 Days: 11,700 pcs.
Leadtime: 22 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3035 €
1700 pcs.
0.2535 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 62627-1, AMP
FASTON: Yes, PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: Yes, Terminal Angle: Straight, Finish: Matte, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: None, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Screw, Stud Diameter: 3.68 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 3.68 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | screw connection | |
| Version | flat plug distributor, 1 x 2 contacts | |
| Design | straight | |
| Isolated | No | |
| Length | 25.65 mm | |
| Material | Steel, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
