62912-1 | AMP

62912-1

Order No.: 34P9042
EAN: 4099889614565
MPN:
62912-1
AMP

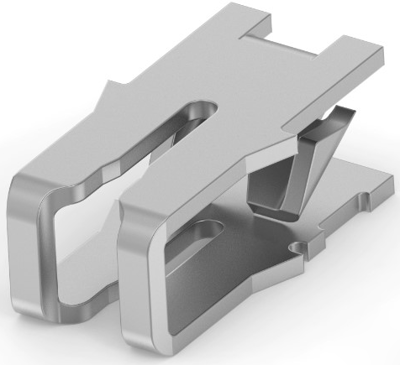

62912-1 AMP Flat Plugs Image 1

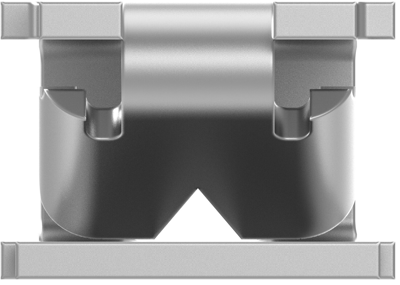

62912-1 AMP Flat Plugs Image 2

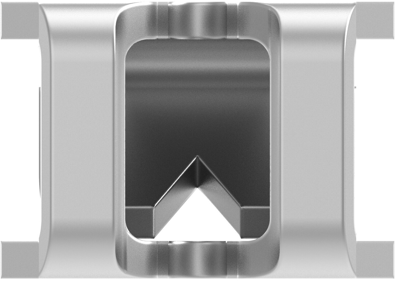

62912-1 AMP Flat Plugs Image 3

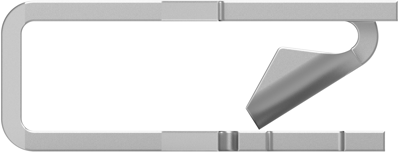

62912-1 AMP Flat Plugs Image 4

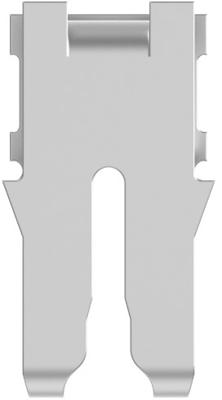

62912-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1345 € *
Available: 0 pcs.
Available in 5 Days: 14,709 pcs.
Leadtime: 42 Weeks **
Total Price:
0.13 € *
Price list
Quantity
Price per unit*
750 pcs.
0.1345 €
3700 pcs.
0.1333 €
*incl. VAT plus shipping costs
**Subject to prior sale

Magnet Wire Terminals, 62912-1, AMP

Magnet Wire Terminal Wire/Cable Type: Magnet Wire, Sealable: No, Cavity Size: Size 2, Magnet Wire Terminal Plating Material: Tin, Magnet Wire Terminal Terminal Type: Poke-In, Magnet Wire Terminal Terminal Orientation: Twisted, Magnet Wire Terminal Termination Method: IDC Standard, Magnet Wire Terminal Mating Retention Type: Locking, Terminal Height: 7.62 mm, Aluminum Wire Size: 18.5-16.5 AWG, Aluminum Wire Size: 0.95-1.2 mm, Lead Wire Size: 0.5-0.9 mm², Lead Wire Size: 20-18 AWG, Insulation Requirement: Uninsulated, Operating Temperature Range: -65-150 °C, Identification Number: 24, Packaging Quantity: 1000, Magnet Wire Terminal Packaging Method: Package, Comment: Single magnet wire only, Solid or overcoated stranded lead wire only.

Technical specifications
Connection IDC connection
Version enameled wire contact
AWG cross-section AWG 20-18
Isolated No
Length 7.87 mm
Cable cross-section 0.5-0.9 mm²
Material brass, tin-plated
Logistics
Country of origin US
Customs tariff number 85389091
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
