63067-1 | AMP

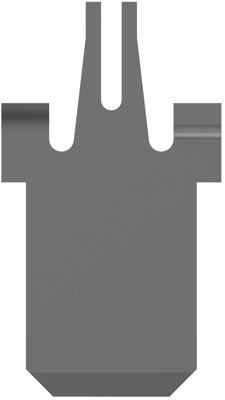

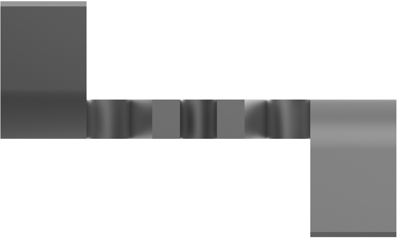

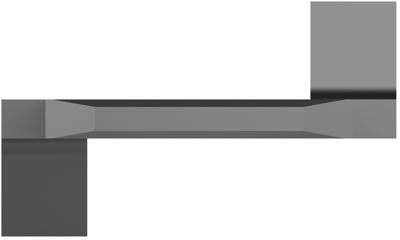

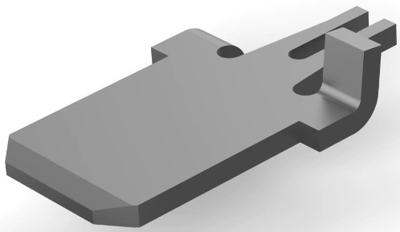

Faston plug, 6.35 x 0.81 mm, L 14.61 mm, uninsulated, straight, 63067-1
Unit Price (€ / pc.)
0.2344 € *
Available: 0 pcs.
Available in 5 Days: 79,552 pcs.
Leadtime: 25 Weeks **
Total Price:
0.23 € *
Price list
Quantity
Price per unit*
400 pcs.
0.2344 €
2300 pcs.
0.1940 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 63067-1, AMP
Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 6.35, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: With, PCB Terminal PCB Thickness (Recommended): 1.57 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.81 mm, PCB Hole Diameter: 2.54 mm, Height Above PC Board: 12.06 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | straight | |
| Isolated | No | |
| Length | 14.61 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.35 x 0.81 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
