63603-1 | AMP

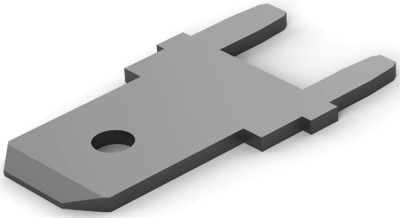

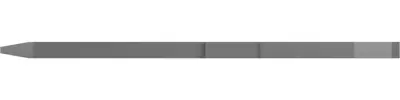

Faston plug, 4.75 x 0.51 mm, L 12.37 mm, uninsulated, straight, 63603-1
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Terminal, 63603-1, TE Connectivity
Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Underplating Material: Brass, Terminal Size: 4.75, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: With, PCB Terminal PCB Thickness (Recommended): 3.18 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 1.32 mm, Height Above PC Board: 9.19 mm, Operating Temperature Range: -30-110 °C, CSA Certified: Yes, Packaging Quantity: 6000, PCB Terminal Packaging Method: Reel, Comment: Insertion equipment available.
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | straight | |
| Isolated | No | |
| Length | 12.37 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 4.75 x 0.51 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
