640024-1 | AMP

Round plug, Ø 1.47 mm, L 8.64 mm, uninsulated, straight, 0.4-1.0 mm², AWG 22-17, 640024-1

Order No.: 34P6347
EAN: 4099889613056
MPN:
640024-1
Series: AMP-IN
AMP

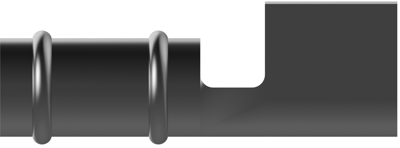

640024-1 AMP Flat Plugs Image 1

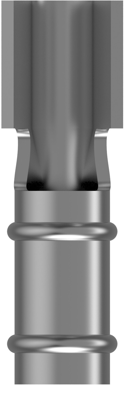

640024-1 AMP Flat Plugs Image 2

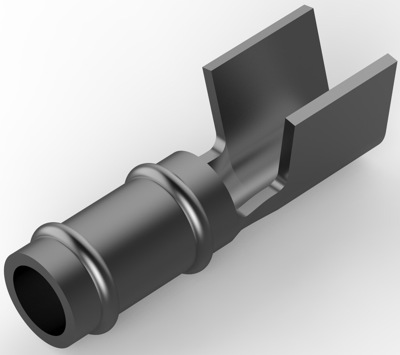

640024-1 AMP Flat Plugs Image 3

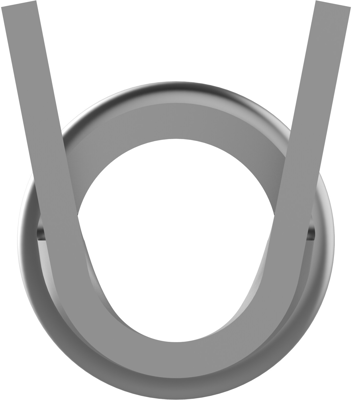

640024-1 AMP Flat Plugs Image 4

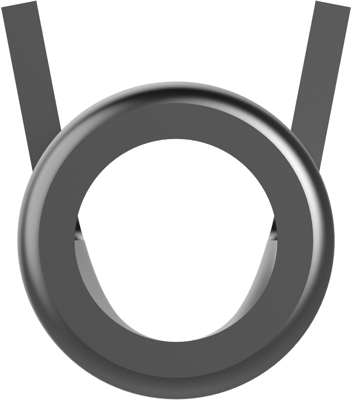

640024-1 AMP Flat Plugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2927 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.2927 €

PCB Terminal, 640024-1, TE Connectivity

PCB Terminal Mounting Style: Stud Mount, Terminates To: Wire & Cable, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Tin, Contact Plating Material: Tin, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Underplating Material: Copper, PCB Terminal Termination Method: Crimp, Wire Insulation Support: Without, Wire Size: 22-17 AWG, Wire Size: 0.3-1 mm², Receptacle Terminal Stock Thickness: 0.25 mm, Operating Temperature Range: -55-105 °C, Packaging Quantity: 1000, PCB Terminal Packaging Method: Bag

Technical specifications
Connection crimp connection
Version round plug
AWG cross-section AWG 22-17
Design straight
diameter 1.47 mm
Isolated No
Length 8.64 mm
Cable cross-section 0.4-1.0 mm²
Material copper, tin-plated
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
