641944-1 | AMP

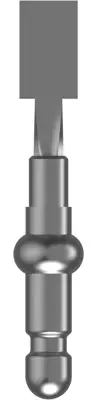

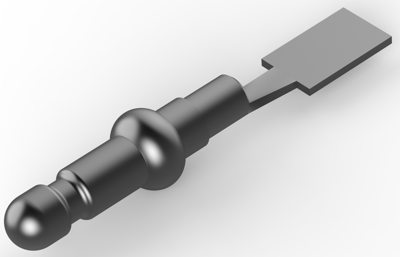

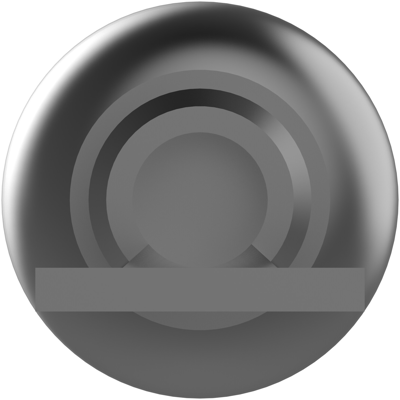

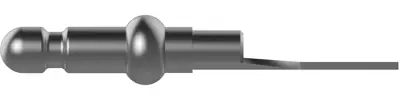

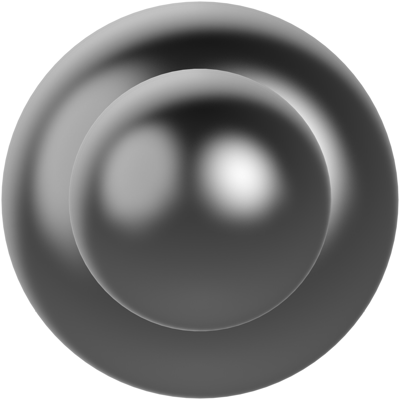

Round plug, Ø 1.47 mm, L 7.87 mm, uninsulated, straight, 641944-1
Order No.: 34P6315
EAN: 4099889612837
MPN:
641944-1
Unit Price (€ / pc.)
0.0750 € *
Available: 0 pcs.
Available in 5 Days: 120,000 pcs.
Leadtime: 20 Weeks **
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
10000 pcs.
0.0750 €
20000 pcs.
0.0726 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 641944-1, AMP
PCB Terminal Mounting Style: Stud Mount, Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, PCB Terminal Plating Material: Pre-Tin, Contact Plating Material: Tin, Terminal & Splice Type: Pin, PCB Terminal Terminal Type: Receptacle, PCB Terminal Mating Pin Diameter: 1.47 mm, Terminal Size: Miniature, PCB Terminal Termination Method: Through Hole, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 1.19 mm, PCB Hole Diameter: 1.4-1.55 mm, Height Above PC Board: 5.33 mm, Receptacle Terminal Stock Thickness: 0.25 mm, Extension Below Board: 2.54 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55-105 °C, Packaging Quantity: 10000, PCB Terminal Packaging Method: Reel
Technical specifications
| Connection | solder connection | |
| Version | round plug | |
| Design | straight | |
| diameter | 1.47 mm | |
| Isolated | No | |
| Length | 7.87 mm | |
| Material | phosphor bronze, tin-plated |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
