726388-2 | AMP

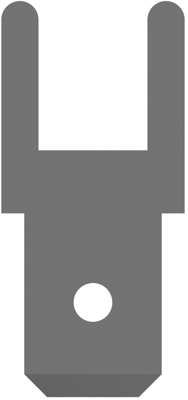

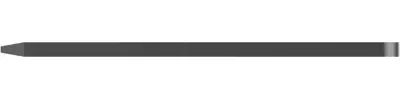

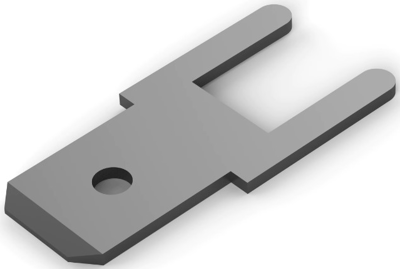

Faston plug, 4.75 x 0.51 mm, L 13.8 mm, uninsulated, straight, 726388-2
Unit Price (€ / pc.)
0.1618 € *
Available: 0 pcs.
Available in 5 Days: 3,659 pcs.
Leadtime: 12 Weeks **
Total Price:
0.16 € *
Price list
Quantity
Price per unit*
550 pcs.
0.1618 €
3200 pcs.
0.1392 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminals, 726388-2, AMP
Terminates To: Printed Circuit Board, Stud Hole: No, Terminal Angle: Straight, Plating Thickness: 4.5 µm, PCB Terminal Plating Material: Tin, Terminal & Splice Type: Tab, PCB Terminal Terminal Type: Tab, Terminal Size: 4.75, PCB Terminal Terminal Orientation: Straight, PCB Terminal Termination Method: Through Hole, PCB Terminal PCB Thickness (Recommended): 3.63-4.45 mm, PCB Terminal Mating Tab Width: 4.75 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, PCB Hole Diameter: 1.4 mm, Height Above PC Board: 8.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, Packaging Quantity: 5000, PCB Terminal Packaging Method: Box
Technical specifications
| Connection | solder connection | |
| Version | faston plug | |
| Design | straight | |
| Isolated | No | |
| Length | 13.8 mm | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 4.75 x 0.51 mm | |
| Angulation | 180° |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
