964290-1 | AMP

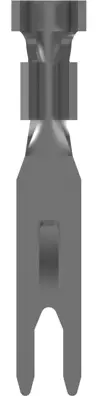

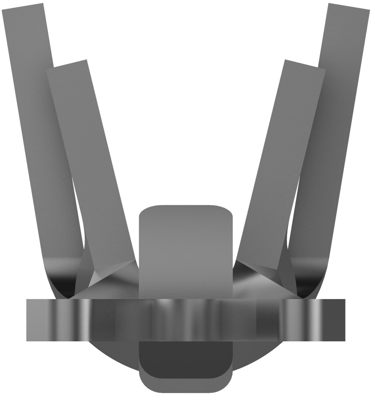

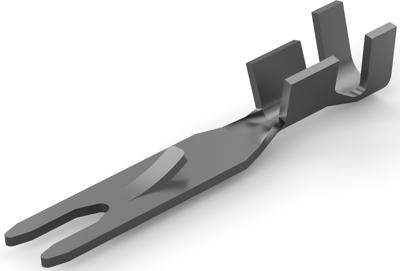

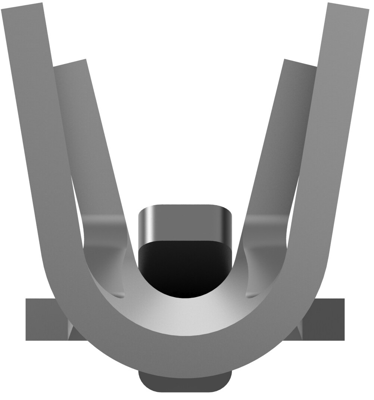

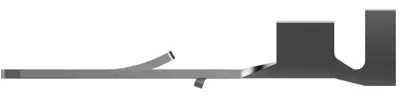

Faston plug, L 7.9 mm, uninsulated, straight, 0.5-1.0 mm², AWG 20-18, 964290-1
Order No.: 34P9093
EAN: 4099889614664
MPN:
964290-1
Unit Price (€ / pc.)
0.1404 € *
Available: 0 pcs.
Leadtime: On Request **
Magnet Wire Terminals, 964290-1, TE Connectivity
Magnet Wire Terminal Wire/Cable Type: Lead Wire, Sealable: No, Magnet Wire Terminal Plating Material: Tin, Terminal & Splice Type: Tab, Magnet Wire Terminal Terminal Type: Poke-In, Magnet Wire Terminal Terminal Orientation: Straight, Magnet Wire Terminal Termination Method: Crimp,IDC Standard, Crimp Area Length: 6.2 mm, Wire Insulation Support: With, Terminal Height: 20.5 mm, Magnet Wire Terminal Wire Insulation Diameter (Max): 2.31 mm, Accepts Wire Insulation Diameter Range: 1.6-2.31 mm, Wire Size: 20-17 AWG, Wire Size: 0.5-1 mm², Packaging Quantity: 6000, Magnet Wire Terminal Packaging Method: Reel,Reel/Carton
Technical specifications
| Connection | crimp connection | |
| Version | faston plug | |
| AWG cross-section | AWG 20-18 | |
| Design | straight | |
| Isolated | No | |
| Length | 7.9 mm | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
