1-1747981-2 | AMP

1-1747981-2

Order No.: 36P6385
EAN: 4099889860917
MPN:
1-1747981-2

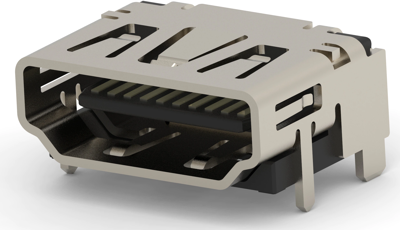

1-1747981-2 AMP HDMI Connector Image 1

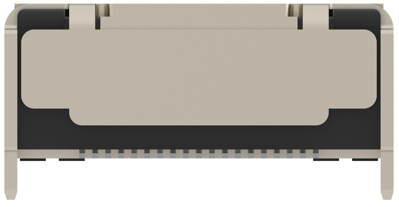

1-1747981-2 AMP HDMI Connector Image 2

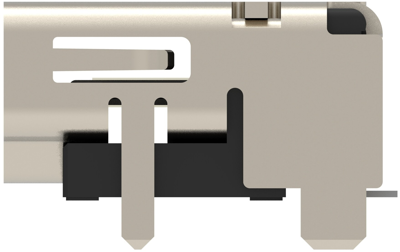

1-1747981-2 AMP HDMI Connector Image 3

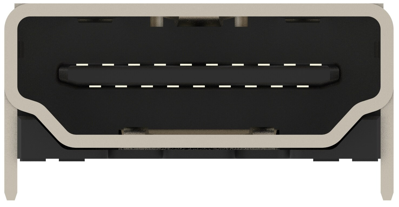

1-1747981-2 AMP HDMI Connector Image 4

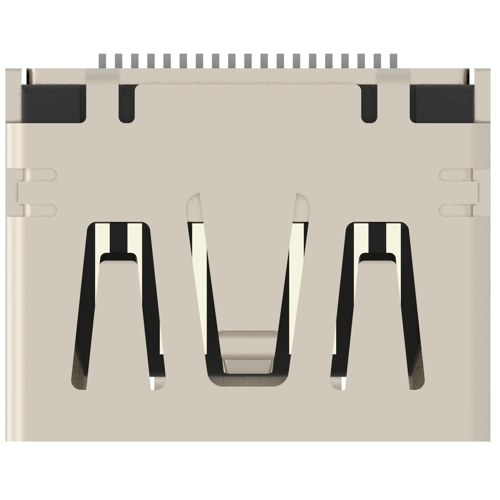

1-1747981-2 AMP HDMI Connector Image 5
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
2,957.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
700 pcs.
4.2245 €

HDMI Connectors, 1-1747981-2, AMP

Ground Component Type: M3 Threaded Hole, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Connector, Stacked: No, Number of Ports: 1, PCB Mount Orientation: Right Angle, Number of Positions: 19, Preloaded: Yes, Shell Plating Finish: Matte, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): .5 A, Contact Mating Area Plating Thickness: .1 µm, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention Type: Straight Leg, PCB Mount Location: Top, Connector Mounting Type: Board Mount, Centerline (Pitch): 1 mm, Housing Color: Black, PCB Thickness (Min): 1.6 mm, Tail Length: 1.1 mm,1.6 mm, Mating Cycles (Max): 10000, Soldering Temperature (Max): 260 °C, Operating Temperature Range: -25 – 70 °C, Assembly Process Feature: Tape, Circuit Application: Signal, Packaging Method: Box & Tray,Tray

Technical specifications
Version Buchse
Pin number 19-polig
Contact connection Lötanschluss
Assembly SMD
Colour schwarz
Logistics
Country of origin US
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
