2-521253-1 | AMP

Insulating grommet for 6.35 mm, 2 pole, PA, UL 94V-2, natural, 2-521253-1

Order No.: 71P6851
EAN: 4099891598662
MPN:
2-521253-1

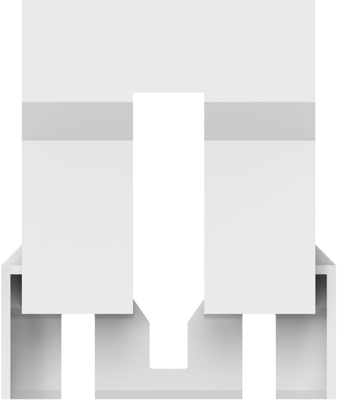

2-521253-1 AMP Insulating Sleeves Image 1

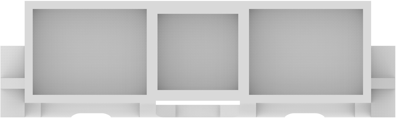

2-521253-1 AMP Insulating Sleeves Image 2

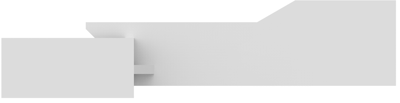

2-521253-1 AMP Insulating Sleeves Image 3

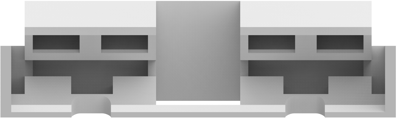

2-521253-1 AMP Insulating Sleeves Image 4

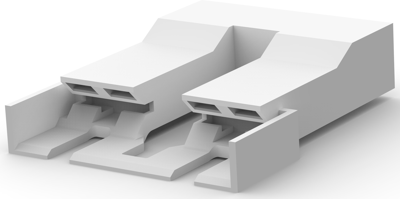

2-521253-1 AMP Insulating Sleeves Image 5
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 2,412 pcs.
Leadtime: 22 Weeks **
Total Price:
202.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
550 pcs.
0.3689 €

Receptacle housing, 2-521253-1, AMP

The 2-521253-1 is a positive lock receptacle that is specifically designed to provide ease of assembly and secure retention to mating tabs. This product contains holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure, or automatically by a cam inside a specially designed nylon housing.

Aside from reduced insertion force, this positive lock gives the assembler a definite mechanical “snap” when the terminal is correctly seated over the mating tab.

Features

  • Reduced insertion force
  • Locks onto tabs containing holes
  • Housing insulates and serves as a removal tool
Technical specifications
Ausführung UL 94V-2
Farbe natur
Für Stecker 6,35 mm
Länge 33.28 mm
Material PA
Polzahl 2-polig
Logistics
Ursprungsland US
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
