5380635-2 | AMP
2.26 mm socket, solder connection, 0.16-0.65 mm², 5380635-2
Order No.: 20F2651
EAN: 4099889668032
MPN:
5380635-2
0-5380635-2
Unit Price (€ / pc.)
1.0234 € *
Available: 6 pcs.
Leadtime: 2 Weeks **
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
20 pcs.
0.9163 €
100 pcs.
0.8092 €
200 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale

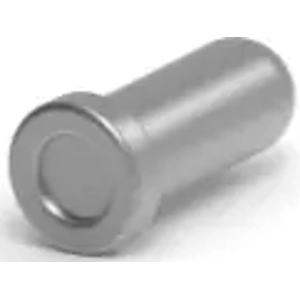

Solder receptacles, 0.46 to 1.02 mm, type TE Connectivity/AMP 0-5380635-2.
Open base, for insertion of round hook-up wires with diameters from 0.46 to max. 1.02 mm; Material: copper, tinned receptacle. Contact: beryllium copper. Spring: gold-plated.
Type: 0–5380635–2, receptacle
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Rated current | 7.5 A | |
| Touch safe | No | |

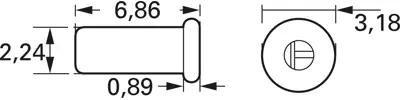

| diameter | 2.26 mm | |
| contact surface | tin-plated | |
| Length | 6.45 mm | |
| Cable cross-section | 0.16-0.65 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
