6-5330808-5 | AMP
1.5 mm socket, solder connection, 0.081-0.16 mm², 6-5330808-5
Order No.: 20F2603
EAN: 4099889667950
MPN:
6-5330808-5
Unit Price (€ / pc.)
0.7021 € *
Available: 14,971 pcs.
Leadtime: 13 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6426 €
50 pcs.
0.5831 €
100 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solder receptacles, 0.33 to 1.65 mm, type TE Connectivity/AMP ..533../..505.
Made of copper, tinned, with closed base, spring made of gold-plated copper beryllium; Collar thickness: 0.36 to 0.56 mm.

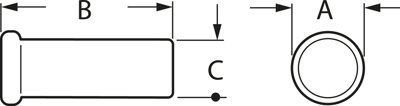

Technical attributes (type, for pin diameter (PD) from/to, dimension A (diameter), dimension B, dimension C (diameter)): 6–5330808–5, PD 0.33/0.51, A 1.5, B 3.61, C 0.97 mm
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsstrom | 5 A | |
| Berührungssicher | No | |
| Durchmesser | 1.5 mm | |
| Kontaktoberfläche | vergoldet | |
| Länge | 3.61 mm | |
| Leiterquerschnitt | 0,081-0,16 mm² |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
