1-406525-1 | AMP

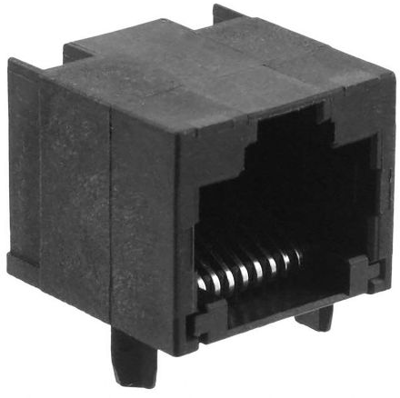

Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, through hole, 1-406525-1
Order No.: 37P1306
EAN: 4099889819281
MPN:
1-406525-1
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Leadtime: On Request **
Modular connector, RJ connector, 1-406525-1, AMP
Connector Assembly, RJ45, Jack, Black, High Temperature Thermoplastic, -40-85 °C, UL 94V-0, Cat 5
Technical Data
- Modular Connector Style: Jack
- Connector Contact Density: Standard
- Port Matrix Configuration: 1x1
- Contact base material: Phosphor Bronze
- Contact Mating Area Plating Material: Gold
- Panel Mount Feature: Without
- Shielded: No
- Connector Height: 12.83 mm
- Centerline (Pitch): 1.02 mm
- Housing Color: black
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Category | Cat 5 | |
| Assembly | through hole | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| RJ-Version | RJ45 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
