5520250-2 | AMP

Socket, RJ11/RJ14, 4 pole, 6P4C, Cat 3, solder connection, PCB mounting, 5520250-2

Order No.: 73F554
EAN: 4099889823592
MPN:
5520250-2
0-5520250-2

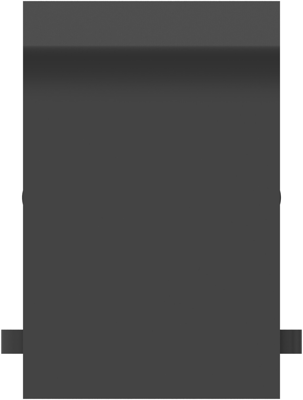

5520250-2 AMP Modular Connectors Image 1

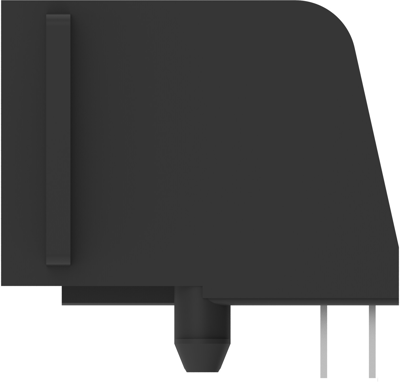

5520250-2 AMP Modular Connectors Image 2

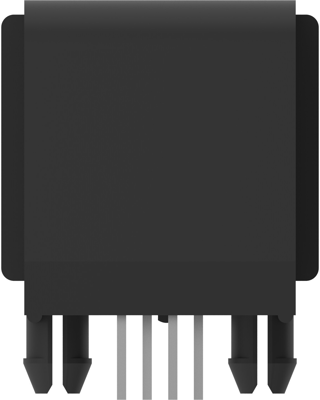

5520250-2 AMP Modular Connectors Image 3

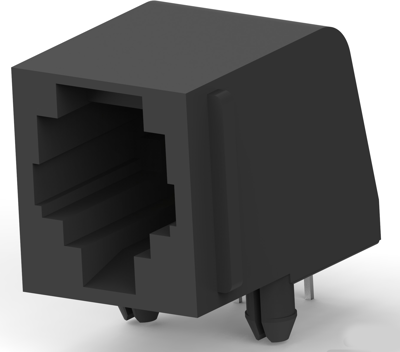

5520250-2 AMP Modular Connectors Image 4

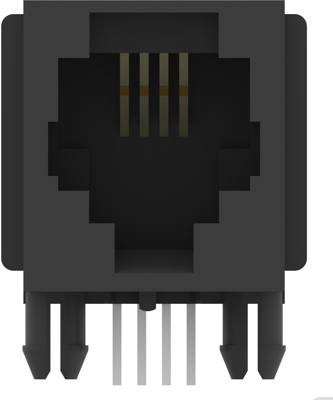

5520250-2 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Available: 0 pcs.
Available in 5 Days: 107,644 pcs.
Leadtime: 11 Weeks **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1658 €
50 pcs.
1.9516 €
100 pcs.
1.7493 €
*incl. VAT plus shipping costs
**Subject to prior sale

Standard modular receptacle housing, 5520250-2, AMP

For PCB mounting. Staggered latching lever (DEC version). Insertion from the side, with housing end stop.

With housing flange, type Technical attributes (type, number of poles of the housing/contacts. Dimensions A/B/C/D): 0-5520250-2, 6-pole/4 contacts, 15.8/20.7/16.0/13.2 mm.

Technical specifications
Connection Lötanschluss
Version Buchse
Additional parts bestückt
Category Cat 3
Assembly Leiterplattenmontage
Pole image 6P4C
Pin number 4-polig
RJ-Version RJ11/RJ14
Logistics
Country of origin CZ
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
