5557786-1 | AMP

Socket, RJ45, 8 pole, 8P8C, Cat 3, solder connection, through hole, 5557786-1

Order No.: 36P8856
EAN: 4099889818864
MPN:
5557786-1
5557786-1 AMP Modular Connectors Image 1

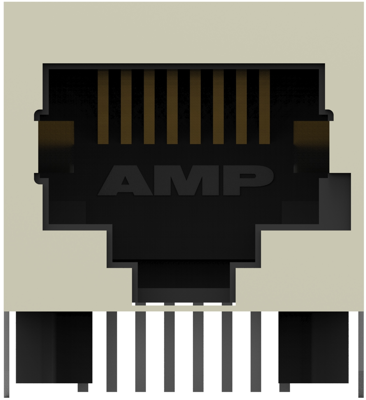

5557786-1 AMP Modular Connectors Image 2

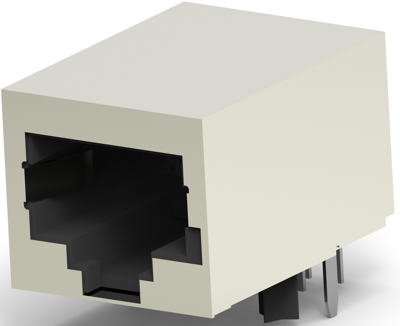

5557786-1 AMP Modular Connectors Image 3

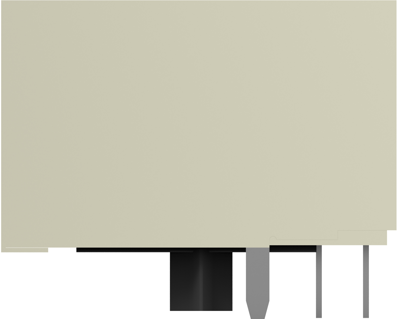

5557786-1 AMP Modular Connectors Image 4

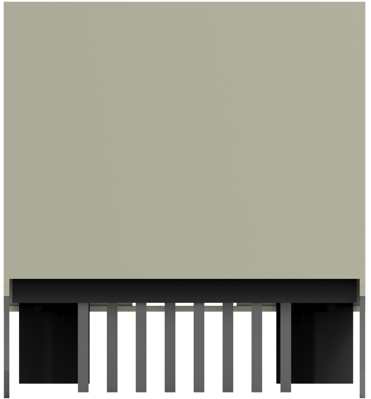

5557786-1 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
5.0337 € *
Available: 0 pcs.
Available in 5 Days: 5,154 pcs.
Leadtime: 10 Weeks **
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
4.6291 €
50 pcs.
4.1650 €
100 pcs.
3.7485 €
*incl. VAT plus shipping costs
**Subject to prior sale

Modular connector, RJ connector, 5557786-1, AMP

Connector Assembly, RJ45, Jack, Black, PCT Polyester, -40-85 °C, UL 94V-0, Cat 3

Technical Data

  • Modular Connector Style: Jack
  • Connector Contact Density: Standard
  • Port Matrix Configuration: 1x1
  • Contact base material: Phosphor Bronze
  • Contact Mating Area Plating Material: Gold
  • Panel Mount Feature: With
  • Shielded: Yes
  • Connector Height: 13.64 mm
  • Centerline (Pitch): 1.02 mm
  • Housing Color: black
Technical specifications
Anschluss Lötanschluss
Ausführung Buchse
Bestückung bestückt
Kategorie Cat 3
Montage Durchgangsloch
Polbild 8P8C
Polzahl 8-polig
RJ-Variante RJ45
Logistics
Ursprungsland TH
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
