6368150-1 | AMP

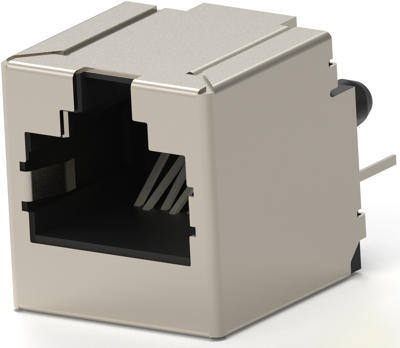

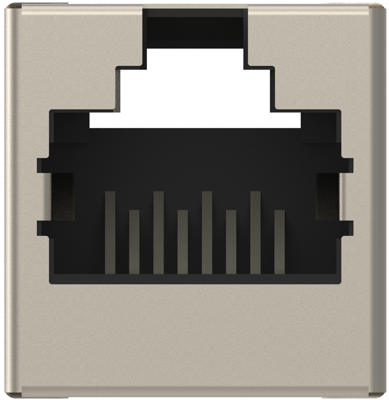

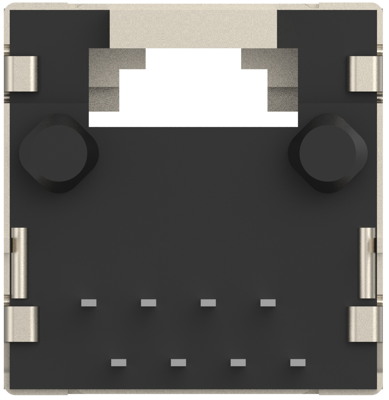

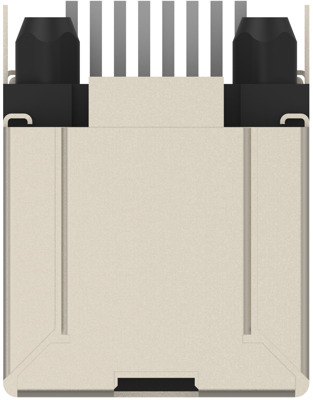

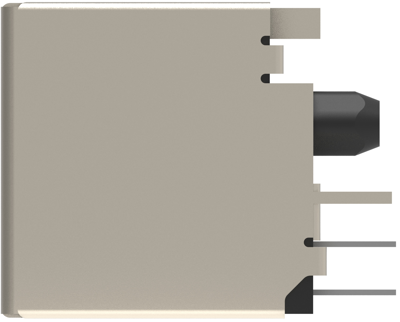

Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, through hole, 6368150-1
Order No.: 36P8897
EAN: 4099889818963
MPN:
6368150-1
Unit Price (€ / pc.)
6.4498 € *
Available: 14 pcs.
Leadtime: On Request **
Total Price:
6.45 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4498 €
10 pcs.
5.9381 €
50 pcs.
5.4026 €
100 pcs.
4.8552 €
*incl. VAT plus shipping costs
**Subject to prior sale
Modular connector, RJ connector, 6368150-1, AMP
Connector Assembly, RJ45, Jack, Black, High Temperature Thermoplastic, -40-85 °C, UL 94V-0, Cat 5
Technical Data
- Modular Connector Style: Jack
- Connector Contact Density: Standard
- Port Matrix Configuration: 1x1
- Contact base material: Phosphor Bronze
- Contact Mating Area Plating Material: Gold
- Panel Mount Feature: With
- Shielded: Yes
- Connector Height: 16.82 mm
- Centerline (Pitch): 1.02 mm
- Housing Color: black
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Category | Cat 5 | |
| Assembly | through hole | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| RJ-Version | RJ45 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
