6368150-3 | AMP

Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, through hole, 6368150-3

Order No.: 36P8899
EAN: 4099889818987
MPN:
6368150-3

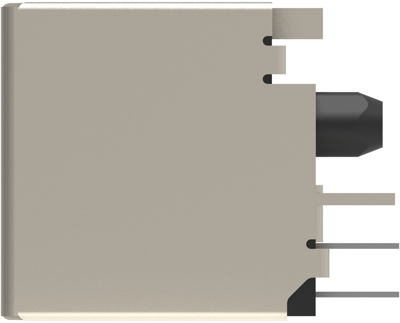

6368150-3 AMP Modular Connectors Image 1

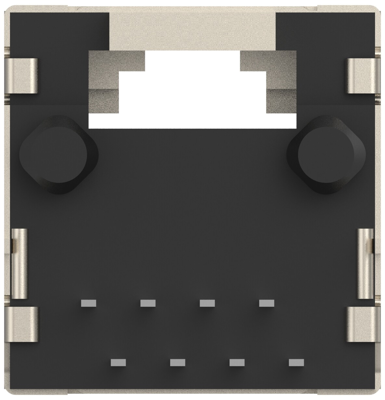

6368150-3 AMP Modular Connectors Image 2

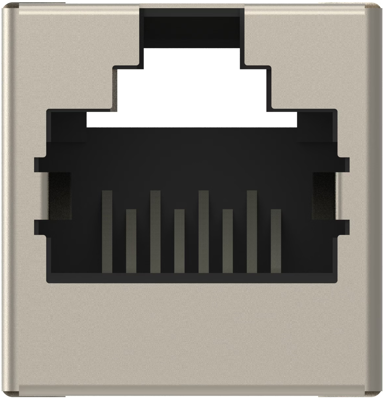

6368150-3 AMP Modular Connectors Image 3

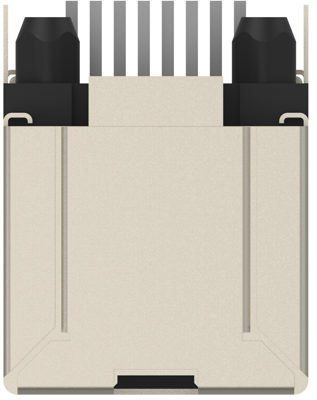

6368150-3 AMP Modular Connectors Image 4

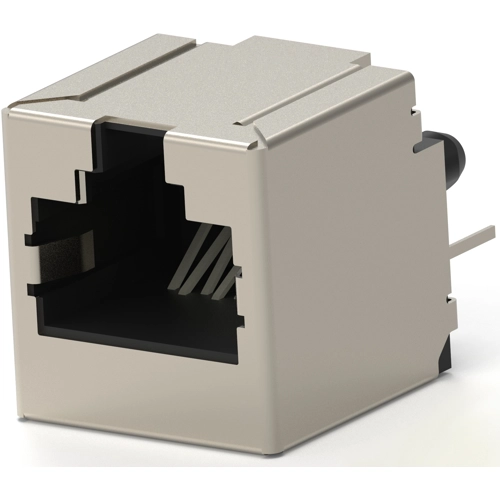

6368150-3 AMP Modular Connectors Image 5
Image may differ
Unit Price (€ / pc.)
9.6152 € *
Available: 0 pcs.
Available in 5 Days: 872 pcs.
Leadtime: 10 Weeks **
Total Price:
9.62 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6152 €
10 pcs.
8.8536 €
50 pcs.
7.9611 €
100 pcs.
7.1638 €
*incl. VAT plus shipping costs
**Subject to prior sale

RJ45-jack, 6368150-3, TE Connectivity

Connector product type: Connector assembly, Modular jack & plug interface type: RJ45, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: Jack, Grounding options: PCB Ground, Number of PCB Ground Tabs: 2, Port configuration: Single port, Port matrix configuration: 1x1, Connector contact density: Standard, Status indicator type: None, Shield Material: Copper Alloy, Modular jack latch orientation: Standard - latch down, Connector profile: Standard, PCB contact termination area plating material: Tin, Contact current rating (Max): 1.5 A, Contact mating area plating material: Gold, Contact base material: Phosphor bronze, Contact mating area plating material thickness: Termination method to printed circuit board: Through hole - solder, Termination post & tail length: 3.99 mm, Panel mount feature: With, Connector mounting type: Board mount, Panel Mount, Mating entry location: Top, Centerline (Pitch): 1.02 mm, Housing color: Black, Housing material: High Temperature Thermoplastic, PCB thickness (recommended): 1.57 mm, Connector height: 16.82 mm, Operating temperature range: -40-85 °C, -40-85 °C, Shielded: Yes, Circuit application: Signal, UL flammability rating: UL 94V-0, Performance category: Cat 5, Packaging quantity: 29, Packaging method: Box, Box & Tube

Technical specifications
Connection Lötanschluss
Version Buchse
Additional parts bestückt
Category Cat 5
Assembly Durchgangsloch
Pole image 8P8C
Pin number 8-polig
RJ-Version RJ45
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
