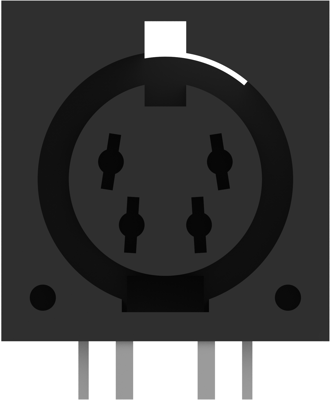

DIN Connector, 5211508-1, TE Connectivity
ESD Protection: Without, Circular DIN Connector Type: Circular DIN, Connector & Housing Type: Receptacle, Connector System: Wire-to-Board,Wire-to-Panel, Sealable: No, Number of Positions: 4, Connector Contact Load Condition: Selectively Loaded, PCB Mount Orientation: Right Angle, Hot Pluggable: No, Operating Voltage: 250 VAC, Shield Underplate Thickness: 1.27 µm, Shield Plating Material: Tin/Nickel, Contact Base Material: Brass, Contact Current Rating (Max): 7.5 A, Contact Mating Area Plating Material: Tin over Nickel, Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature Type: Self-Tapping Screw, Mating Alignment: With, Mating Alignment Type: Keyed, PCB Mount Retention: With, PCB Mount Retention Type: Kinked Legs, Centerline (Pitch): 2.49 mm, Housing Material: Nylon, Height: 20.83 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, Agency/Standard: CSA,UL, Packaging Method: Tray, Comment: For applications requiring a 3-position connector, use a 5-position connector (contact positions 4 and 5 not used).
