1-111446-4 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, black, 1-111446-4

Order No.: 56F5701
EAN: 4099889999686
MPN:
1-111446-4
1-0111446-4
Series: AMP-LATCH

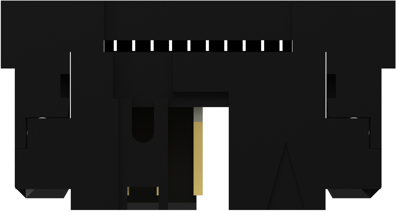

1-111446-4 AMP PCB Connection Systems Image 1

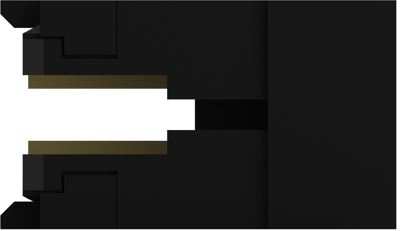

1-111446-4 AMP PCB Connection Systems Image 2

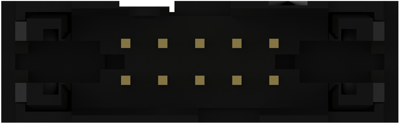

1-111446-4 AMP PCB Connection Systems Image 3
1-111446-4 AMP PCB Connection Systems Image 4
1-111446-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
11.6382 € *
Available: 85 pcs.
Leadtime: 10 Weeks **
Total Price:
11.64 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6382 €
10 pcs.
10.7100 €
50 pcs.
9.7461 €
100 pcs.
8.7703 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connectors, insulation displacement technology

Consisting of plug subpart with male contacts and the upper part with integrated strain relief. Without mounting flange; Housing: thermoplastic polyester, black, compliant with UL 94 V-0. Contact material: tin bronze, in the contact area gold-plated on nickel primer, in the insulation displacement area tinned over nickel. Grid: 2.54 x 2.54 mm.

number of poles: 10-pole

dimensions: A 25.2, B 27.23 mm

type: 1-111446-4

Technical specifications
Anschluss Schneidklemmanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Stiftleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Stift
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 1 A
Orientierung gerade
Polzahl 10-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland CZ
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
