1-111623-8 | AMP

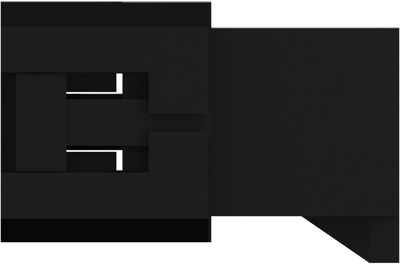

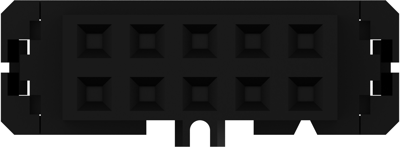

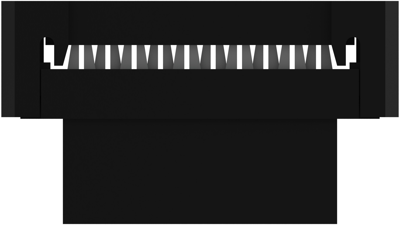

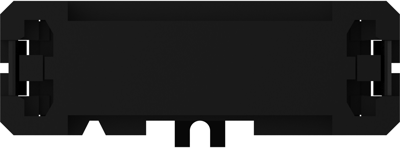

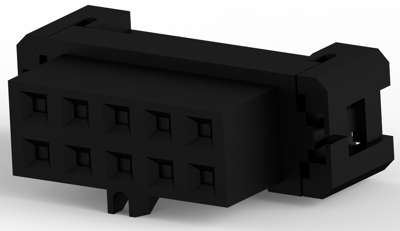

Socket header, 10 pole, pitch 2 mm, straight, black, 1-111623-8
Unit Price (€ / pc.)
8.0801 € *
Available: 0 pcs.
Available in 5 Days: 4,152 pcs.
Leadtime: 10 Weeks **
Total Price:
8.08 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0801 €
10 pcs.
7.4375 €
50 pcs.
6.6878 €
100 pcs.
6.0214 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-111623-8, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester
- Housing Color: black
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | Zinn-Blei | |
| Rated voltage | 125 V | |
| Rated current | 500 mA | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
