1-1123722-0 | AMP

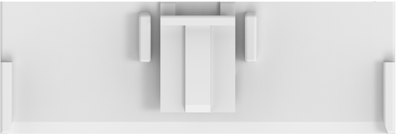

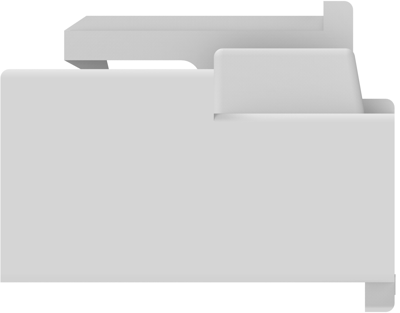

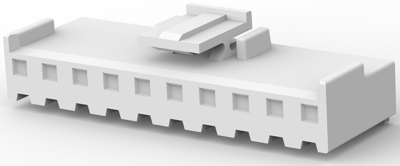

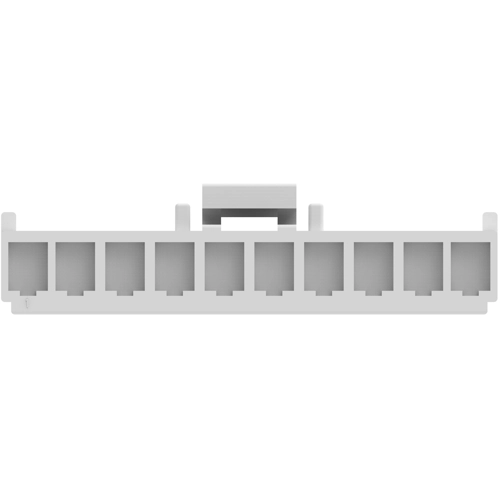

Plug housing, 10 pole, pitch 3.96 mm, straight, natural, 1-1123722-0
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Available in 5 Days: 2,130 pcs.
Leadtime: 18 Weeks **
PCB Connection System, 1-1123722-0, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 10
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Steckergehäuse | |
| Colour | natur | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
