1-1241050-0 | AMP

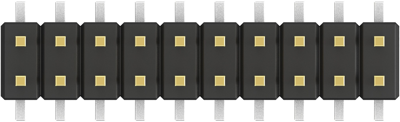

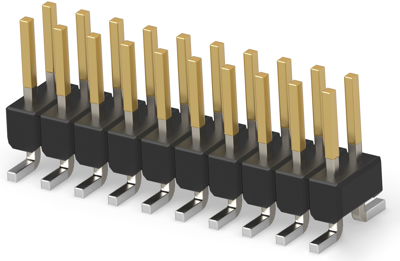

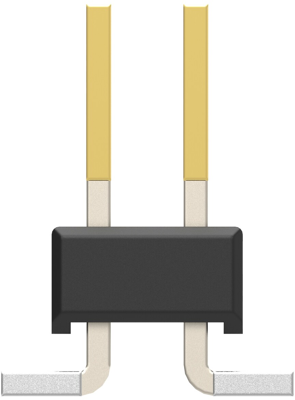

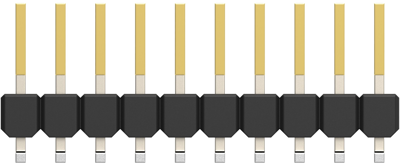

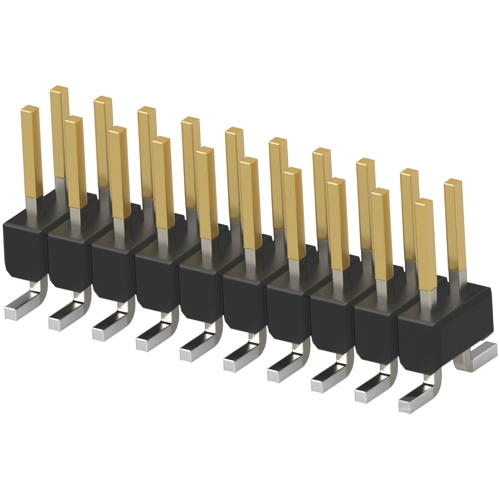

Pin header, 20 pole, pitch 2.54 mm, straight, black, 1-1241050-0
Unit Price (€ / pc.)
7.7588 € *
Available: 818 pcs.
Leadtime: 3 Weeks **
Total Price:
7.76 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7588 €
10 pcs.
6.8187 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD pin headers, type TE Connectivity/AMP Modu ..-124../0-096.
With 2.54 mm grid, for surface mounting; Contacts: CuSn. Contact finish: mating side 0.8 µm Au over 1.27 µm Ni, solder side at least 2.5 µm tin over 1.27 µm Ni. Housing: socket header PCT glass fiber reinforced, black, pin header LCP, black. Useful life: 200 insertion/removal cycles. Insulation resistance: at least 5.0 Gohm. Contact resistance: max. 20 mohm. Dielectric strength: 250 VAC. Rated current: 2.0 A. Operating temperatures: –65 to +105 °C.
Technical attributes (type, number of poles, version): 1-1241050-0, 2 x 10-pole, dual-row
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | Yes | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
