1-1376388-2 | AMP

Plug housing, 2 pole, pitch 5 mm, straight, red, 1-1376388-2

Order No.: 35P3775
EAN: 4099889931396
MPN:
1-1376388-2

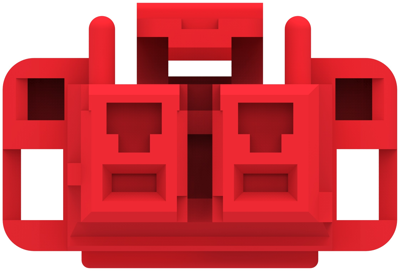

1-1376388-2 AMP PCB Connection Systems Image 1

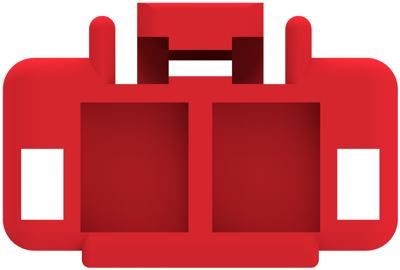

1-1376388-2 AMP PCB Connection Systems Image 2

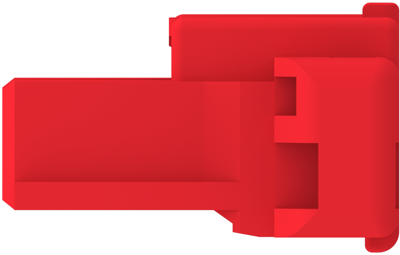

1-1376388-2 AMP PCB Connection Systems Image 3

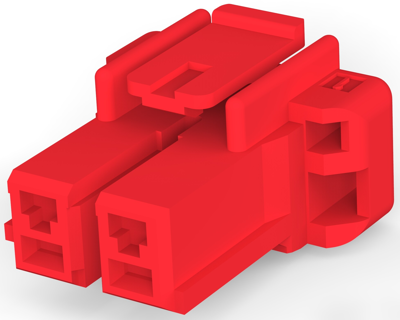

1-1376388-2 AMP PCB Connection Systems Image 4

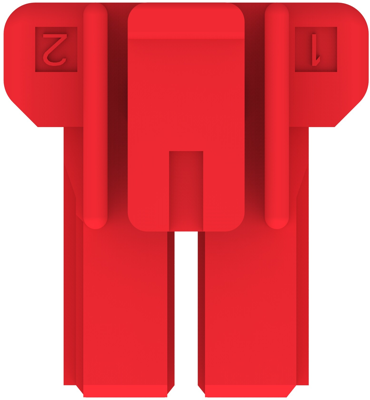

1-1376388-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 15,458 pcs.
Leadtime: 22 Weeks **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3213 €
50 pcs.
0.2820 €
100 pcs.
0.2392 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1376388-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6 GF
  • Housing Color: red
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 10 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Anschluss Crimpanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Steckergehäuse
Bestückung unbestückt
Farbe rot
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 300 V
Nennstrom 10 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 5 mm
Verriegelung Ja
Logistics
Ursprungsland CZ
Zolltarifnummer 85389091
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
