1-1393536-3 | AMP

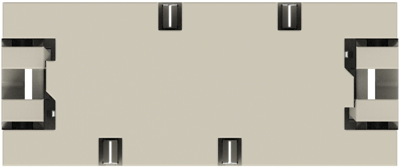

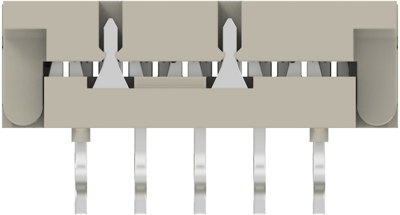

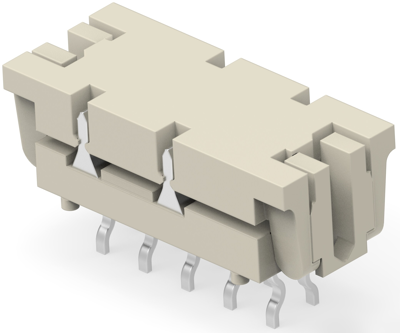

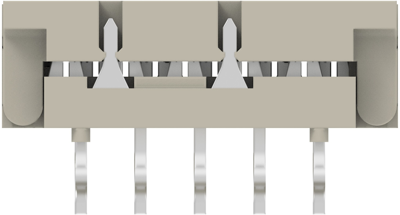

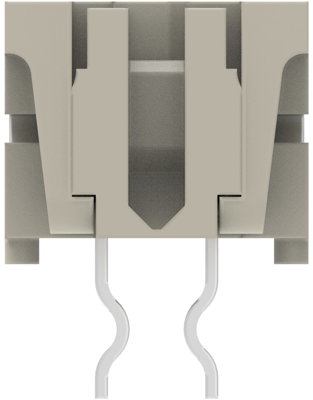

Insulation displacement connectors, type TE Connectivity/AMP BK-LEV 413.

For fixed soldering into PCBs. With insulation displacement terminals for ribbon cables; Partition: 1.27 mm. Grid: 2.54 mm. Operating current at +20 °C: 2.0 A. Test voltage: 500 V. Insulation resistance: at least 100 Gohm. Operating temperatures: –55 to +125 °C. Insulator: thermoplastic, glass fiber-reinforced. Copper alloy contacts. Insulation displacement contacts: tinned over nickel. Tinned solder pins. Contactable cable cross-sections (compliant with DIN/VDE 0811): stranded wire 0.09 mm² (AWG 28/7) and 0.14 mm² (AWG 26/7), wire diameter 0.25 mm (AWG 30/1) and 0.32 mm (AWG 28/1). Insulation thickness: max. 1.1 mm. Clamping plate: supplied in latched state, with marking for the edge wire. Dimension a: (number of poles/2 - 1) x 2.54 mm. Certified by UL E 92320.

Technical attributes (type, number of poles, dimension b): 1-1393536-3, 10-pole, b 17 mm
