1-1586039-6 | AMP

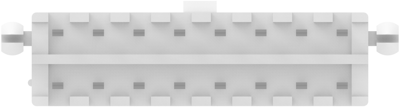

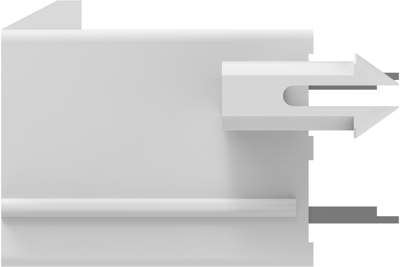

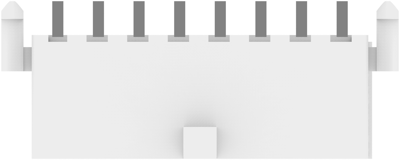

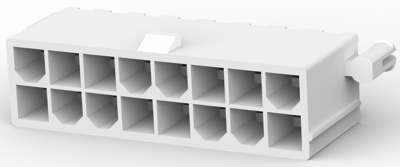

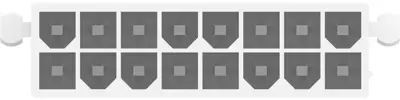

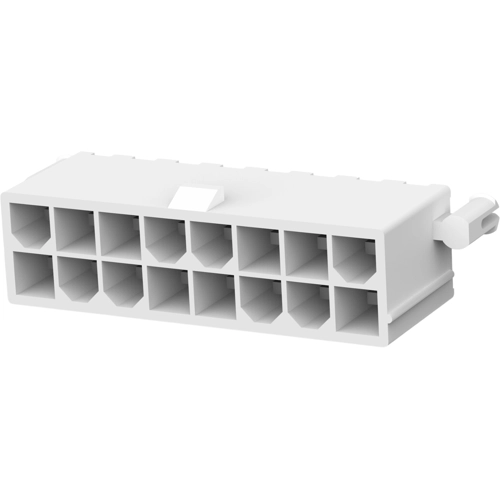

Pin header, 16 pole, pitch 4.2 mm, straight, natural, 1-1586039-6
Unit Price (€ / pc.)
1.2019 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.0948 €
50 pcs.
0.9758 €
100 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-1586039-6, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 16 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: PA 66
- Housing Color: natural
- Orientation: straight
- Number of positions: 16
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline, Matrix
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Orientation | straight | |
| Pin number | 16 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
