1-1586040-6 | AMP

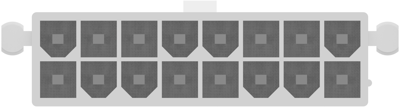

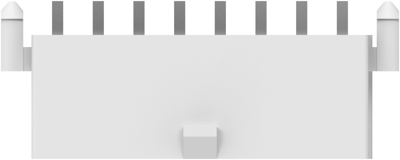

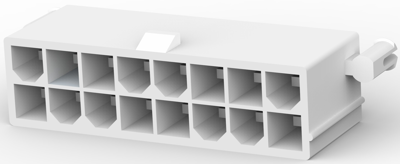

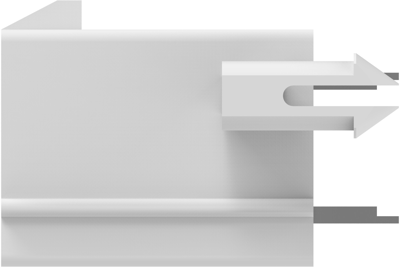

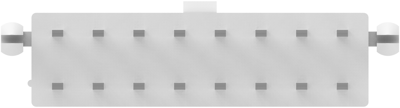

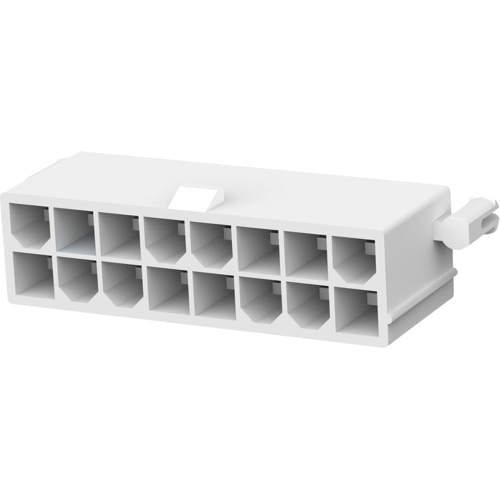

Pin header, 16 pole, pitch 4.2 mm, straight, natural, 1-1586040-6
Order No.: 35P5367
EAN: 4099889938050
MPN:
1-1586040-6
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1-1586040-6, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 16 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 16
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 16-polig | |
| Grid | 4.2 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Additional parts | bestückt | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
