1-1586043-2 | AMP

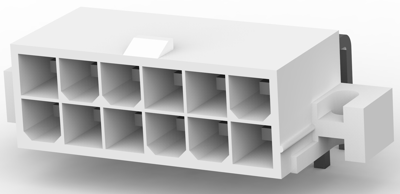

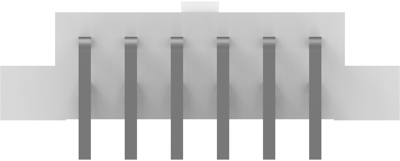

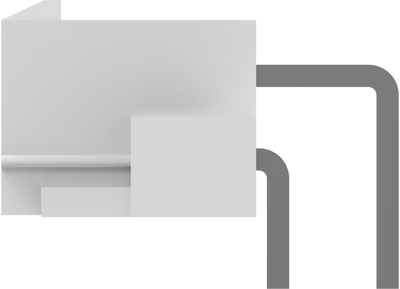

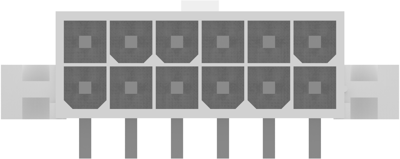

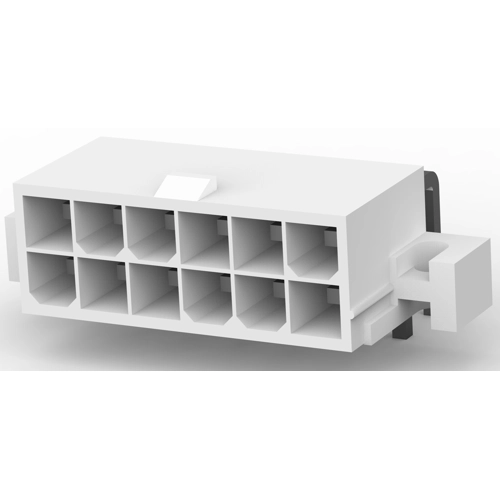

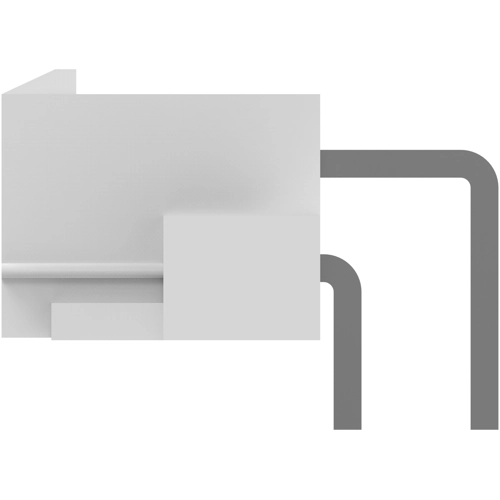

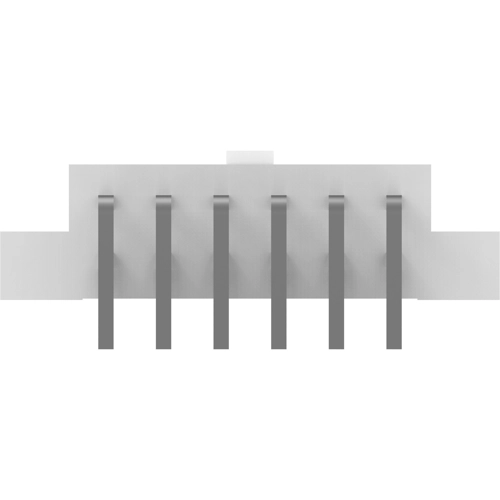

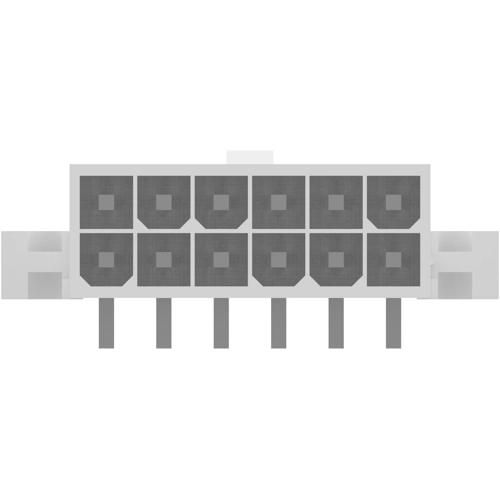

Pin header, 12 pole, pitch 4.2 mm, angled, white, 1-1586043-2
Unit Price (€ / pc.)
1.4042 € *
Available: 0 pcs.
Available in 5 Days: 614 pcs.
Leadtime: 20 Weeks **
Cable connectors, 2- to 24-pole, 4.2 mm grid, type TE Connectivity/AMP VAL-U-LOK.
4.2 mm grid, single- and dual-row; Housing: Nylon, flame retardant to UL 94 V-2. Contacts: tinned brass. Rated voltage: 600 VAC. Rated current: max. 9.0 A per cable. Insulation resistance: min. 1000 Mohm. Insertion force (per contact): 6.9 N. Certifications: UL, CSA.
PCB sockets, dual-row, angled, with mounting strap, type ..-1586043.
Technical attributes (type, number of poles, dimensions A/B): 1-1586043-2, 12-pole, A 26.4, B 30 mm
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Brechbar | No | |
| Farbe | weiß | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 600 V | |
| Nennstrom | 9 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 12-polig | |
| Rastermaß | 4.2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
