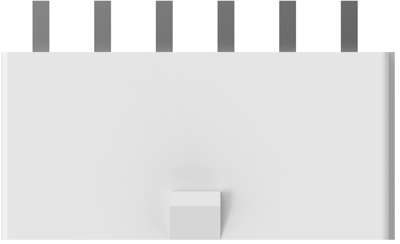

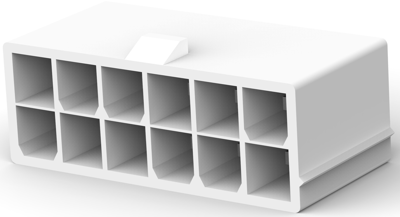

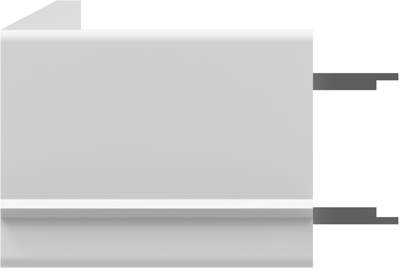

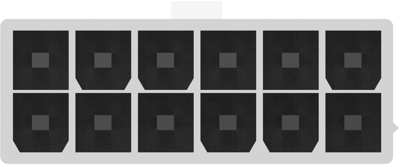

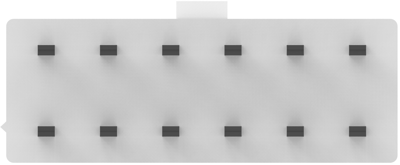

1-1586768-2 | AMP
Pin header, 12 pole, pitch 4.2 mm, straight, white, 1-1586768-2
Order No.: 35P5357
EAN: 4099889937954
MPN:
1-1586768-2
Unit Price (€ / pc.)
1.3923 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 1-1586768-2, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Polyamide
- Housing Color: white
- Orientation: straight
- Number of positions: 12
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 9 A
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline, Matrix
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 9 A | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Grid | 4.2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
