1-1586768-4 | AMP

Pin header, 14 pole, pitch 4.19 mm, straight, white, 1-1586768-4

Order No.: 35P5364
EAN: 4099889938029
MPN:
1-1586768-4

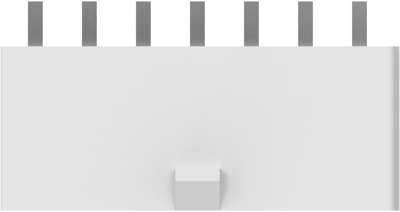

1-1586768-4 AMP PCB Connection Systems Image 1

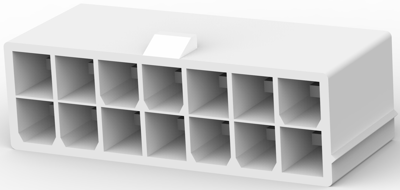

1-1586768-4 AMP PCB Connection Systems Image 2

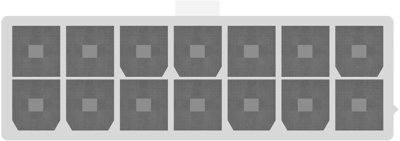

1-1586768-4 AMP PCB Connection Systems Image 3

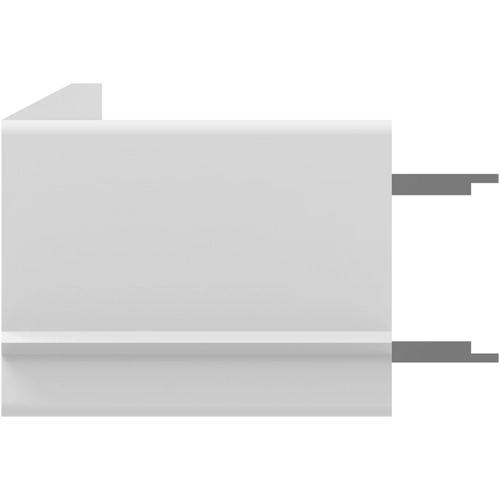

1-1586768-4 AMP PCB Connection Systems Image 4

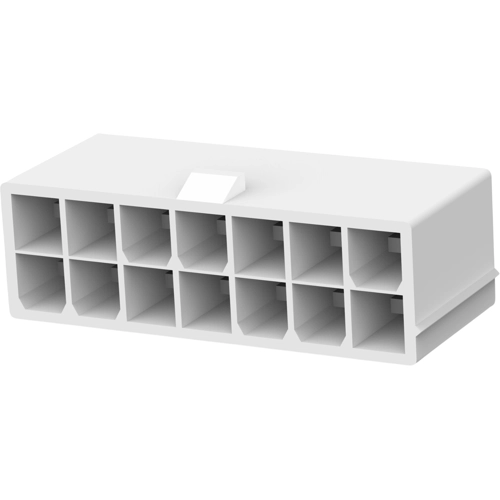

1-1586768-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
3,109.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1950 pcs.
1.5946 €

PCB Connection System, 1-1586768-4, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 14 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Polyamide
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 14
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.19 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 14-polig
Grid 4.19 mm
Connection Leiterplattenanschluss
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 600 V
Rated current 9 A
Additional parts bestückt
Number of rows 2
Breakable No
Colour weiß
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
