1-163035-0 | AMP

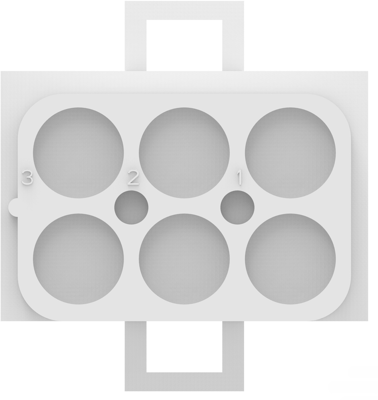

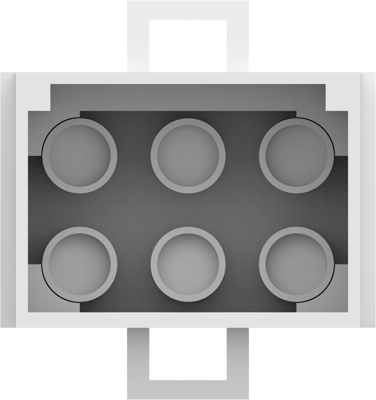

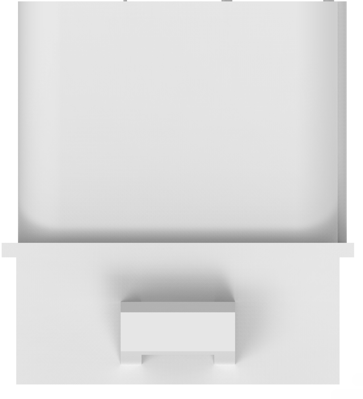

Plug housing, 6 pole, pitch 7.11 mm, straight, natural, 1-163035-0
Unit Price (€ / pc.)
0.595 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
PCB Connection System, 1-163035-0, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Polyamide
- Housing Color: natural
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 7.11 mm
- Row-to-Row Spacing: 7.1 mm [0.28 in]
- Sealable: No
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Bestückung | unbestückt | |
| Farbe | natur | |
| Kontaktart | Stift | |
| Nennspannung | 250 V | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 7.11 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
