1-1658526-3 | AMP

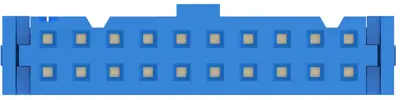

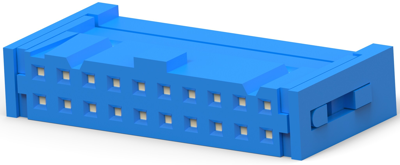

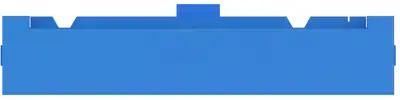

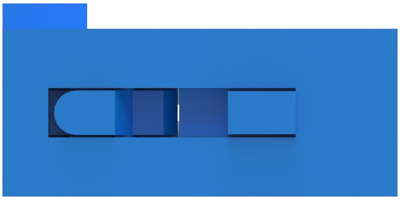

Socket header, 20 pole, pitch 2.54 mm, straight, blue, 1-1658526-3
Unit Price (€ / pc.)
9.9603 € *
Available: 29 pcs.
Leadtime: 11 Weeks **
Total Price:
149.40 € *
Price list
Quantity
Price per unit*
15 pcs.
9.9603 €
65 pcs.
9.4605 €
150 pcs.
9.1273 €
300 pcs.
8.8417 €
*incl. VAT plus shipping costs
**Subject to prior sale
Insulation displacement connectors, premium series, type TE Connectivity/Ansley ..-0165../..-176.
Ribbon cable connector, patented tubular contacts with 2.54 x 2.54 mm grid; Housing: glass-fiber-reinforced thermoplastic to 94 V-0. Color: blue. Contacts: beryllium copper gold-plated on nickel primer in the connecting area, in the mating area tinned on nickel primer. Operating current: 1.0 A. Dielectric strength: 500 V. Operating temperatures: –55 to +125 °C. Certifications: UL, CSA
Female connectors, type ..-165.
With center polarity mechanism and strain relief.
Type: 1–1658526–3, 20–pole, A 29.87, B 22.86 mm
Technical specifications
| Anschluss | Schneidklemmanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | blau | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennstrom | 1 A | |
| Orientierung | gerade | |
| Polzahl | 20-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
