1-1658526-8 | AMP

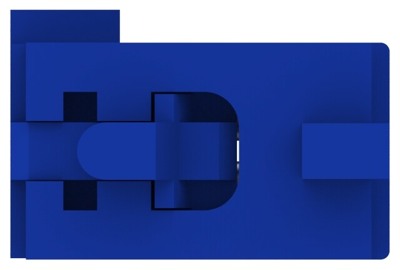

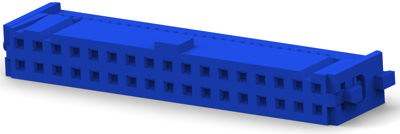

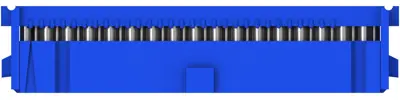

Socket housing, 34 pole, pitch 2.54 mm, straight, blue, 1-1658526-8
Unit Price (€ / pc.)
10.4244 € *
Available: 0 pcs.
Available in 5 Days: 6,115 pcs.
Leadtime: 12 Weeks **
Total Price:
10.42 € *
Price list
Quantity
Price per unit*
10 pcs.
10.4244 €
45 pcs.
10.2340 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1-1658526-8, AMP
Wire-to-Board, Wire & Cable, 34 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Color: blue
- Number of positions: 34
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Rated current: 1 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
| Connection | IDC connection | |
| Connection plating | gold-plated | |
| Number of rows | 2 | |
| Version | socket housing | |
| Additional parts | equipped | |
| Colour | blue | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 34 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
