1-1658622-2 | AMP

Socket header, 64 pole, pitch 2.54 mm, straight, black, 1-1658622-2

Order No.: 36P5483
EAN: 4099889943672
MPN:
1-1658622-2
Series: AMP-LATCH

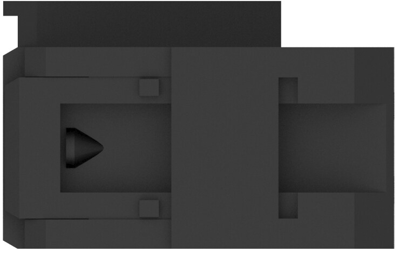

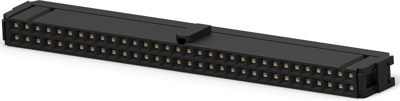

1-1658622-2 AMP PCB Connection Systems Image 1
1-1658622-2 AMP PCB Connection Systems Image 2
1-1658622-2 AMP PCB Connection Systems Image 3
1-1658622-2 AMP PCB Connection Systems Image 4
1-1658622-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Available in 5 Days: 178 pcs.
Leadtime: 15 Weeks **
Total Price:
22,362.48 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5400 pcs.
4.1412 €

PCB Connection System, 1-1658622-2, AMP

Wire-to-Board, Wire & Cable, Vertical, 64 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 64
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Anschluss Leiterplattenanschluss
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennspannung 250 V
Nennstrom 1 A
Orientierung gerade
Polzahl 64-polig
Rastermaß 2.54 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
